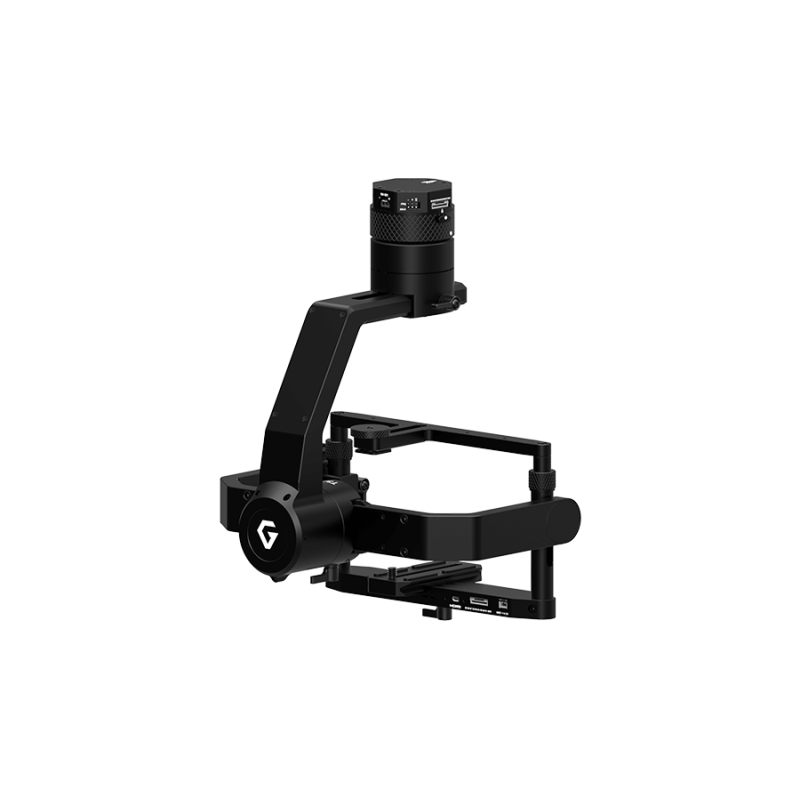

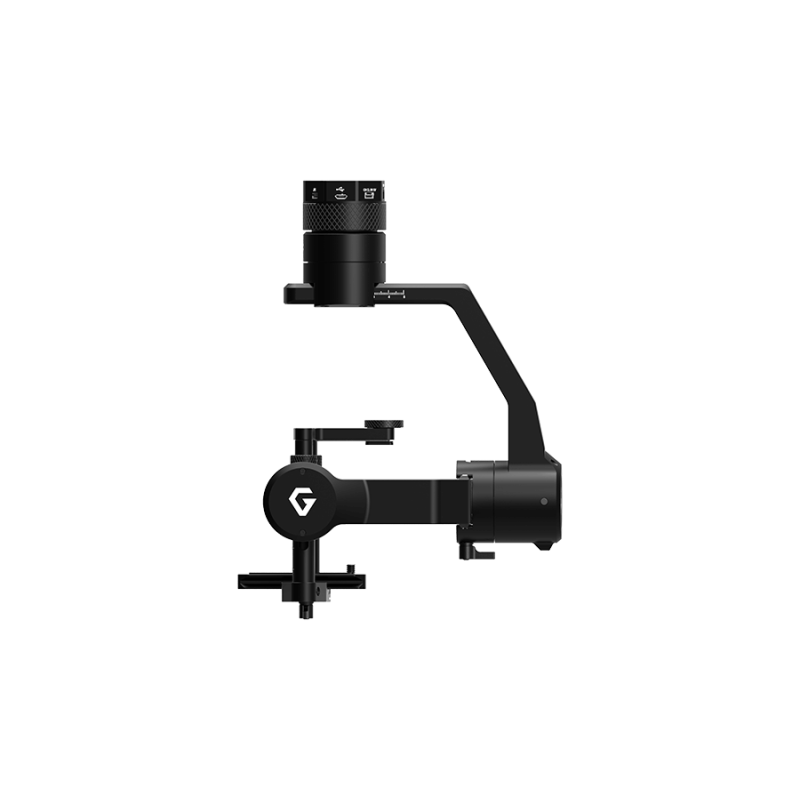

Gremsy - T3 V3 Gimbal

General

Gremsy T3 (version 3) is the most advanced 3-axis camera stabilizer ready to fly with many cameras in both cinematography & industrial applications. Featuring onboard HDMI and AUX ports, the T3 ensures a simple and clean setup as well as increased portability for your system. Not only providing built-in Bluetooth functionality for optimal comfort during your setup control, but we also make your plug & play installation easier within 2 seconds. With Gremsy T3, adapting to various aerial missions has never been so fast and straightforward.

HDMI HYPER QUICK RELEASE

HDMI integrated on the gimbal enables clean and straightforward setup while ensuring ability to transmit excellent video quality. With HDMI Hyper QR, the inconvenience is taken away. Just push in, twist to lock, and it's done. Thanks to built-in 14.5V Power Regulator in Hyper QR, the T3 can receive power directly from flight battery to convert to a 14.5V power supply.

ADVANCED I/O INTERFACE

Intuitive hardware interface including POWER, CAN, COM, SBUS, JR, USB, AUX and HDMI ports has relocated on QR to quickly interface with multiple devices such as 3rd party flight controller, remote control, auxiliary I/O and power your ideal system of cameras/accessories.

AUX PORT

Aux port with S1-S9 optional signals for users to connect to other devices such as AV signal or camera trigger for additional functionality.

CLEAN DESIGN INTERNAL WIRING

Remove the need to plug in many cables, the T3 makes it trouble-free to carry out your aerial missions.

HEATED & TEMPERATURE CONTROLLED IMU

The T3 uses 3-axis accelerometer and 3-axis gyroscope IMU to ensure that it performs accurately and efficiently. Heated and temperature controlled IMU sensor is protected by an aluminum-made box. This allows for a flawless operation in too high or too low ambient temperatures.

HIGH-PERFORMANCE GIMBAL CONTROLLER

The gMotion Controller, designed and made by Gremsy offers unparalleled professional camera stabilization properties at 32-bit level. Sensor data and motors correction are updated as fast as 2000 times per second to enable incredibly smooth footage.

WEIGHT & DIMENSION

Gremsy T3 has a mid-size design, the weight of 2.65 lbs for a maximum payload of 3.7 lbs. WEIGHT / MAXIMUM PAYLOAD 2.65 lbs / 3.7 lbs DIMENSION (W x D x H): 237 x 184 x 288 mm CAMERA CASE (W x L x H): 152 x 100 x 120 mm

Compatible Cameras among others:

• Wiris
• Canon 6D Mk I, Mk II
• Pentax
• Nikon D810, D800, D500
• Panasonic GH3, GH4, GH5
• Sony A6000, A6300, A6500
• Sony A7S (mk I - II)
• Sony A7r (mk I - II)
• Sony A9 (mkI - II)
• Phase One IXM50/100
• UMC-S3CA
• FUJIFILM X-T

START-UP TIME WITHIN 2 SECONDS

No need to manually set up the home position every time you boot up the gimbal. Gremsy T3 provides an easy one step plug and play installation that takes only 2 seconds to complete.

BUILT-IN BLUETOOTH CONNECTION

Built-in Bluetooth functionality allows users to conveniently control the gimbal via smartphone, tablet or other suitable devices. *Wifi module does not support this model.

In the Box

• Gremsy T3-V3 Gimbal x1
• HDMI Hyper Quick Release x1
• Hotshoe Screw x1
• Hotshoe Plate x1
• Hotshoe Screw Extension x1
• Camera Slide & Screw x1
• Quick Release Rubber cover x1
• Sbus Cable x1
• Cable For DJI FC (A3, N3) x1
• Cable For Pixhawk (Com 2,Com 4) x2
• Power Supply Cable x1
• Power Tilt Cable x1
• Auxiliary Cable x2
• Micro USB Cable x1
• M3 x 8 Screw x5
• Allen Key 1,5 (mm) x2
• Allen Key 2 (mm) x1
• Allen Key 2.5 (mm) x1
