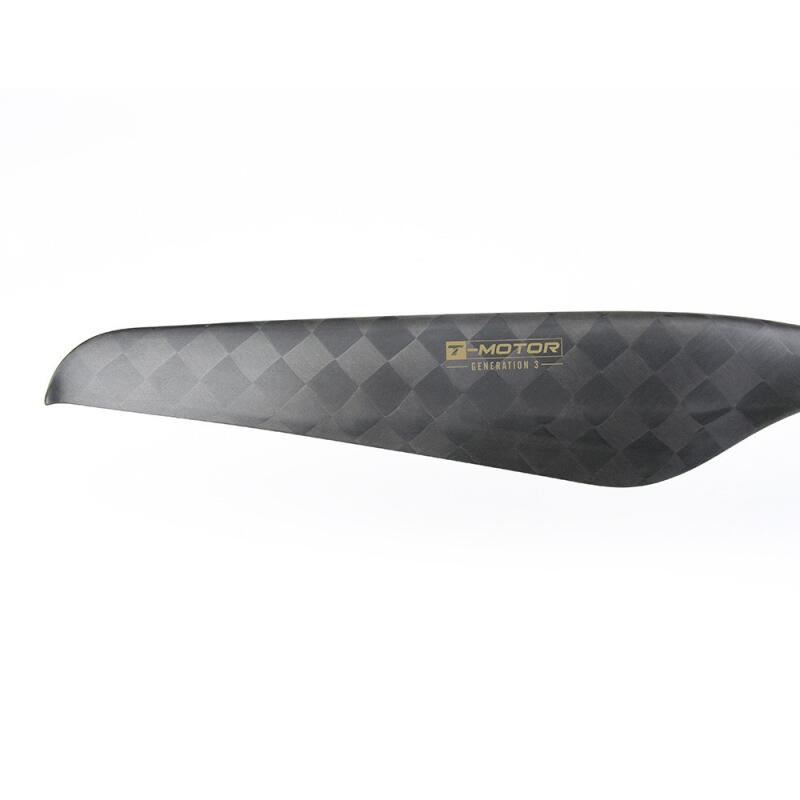

T-Motor NS24x7.2 Propeller 2 STK/SET

$ 256,60

incl. 19% VAT , plus

Ultra light
Lower moment of intertia
Scratch resistant
Efficient and longer flight time

Bestellung auf Anfrage

Delivery time: ca. 3 weeks

General

The new "Generation 3" of T-Motor's Carbon Fibre Propellers. The NS-Series was entirely new developed and comes with a new design and ultra-light composition. It can reach an efficiency increase of up to 7% and increased max thrust of up to 6% compared tot the Polish-Series. The max flight time can be extended by up to 10%!

Longer Flights, More Possibilities

3rd generation carbon fibre propellers for extra flight time of up to 2% - 10%.

* The flight increase of 2%-10% are based on the comparison between NS and P series propellers. (Altitude: 30m, flight height: 20m, wind speed: 0.5m/s-2.5m/s). This figure is for reference only.

Design Evolution - One Step Higher

Enormous hydrodynamic simulations in R & D to select the suitable programs.

3% ~ 7%+ Efficiency
3% ~ 6%+ Max. Thrust

* The increase of 3%-7% thrust at hover as well as 3%-6% max. thrust are based on comparison bench test with P series propellers.

Special aerodynamic design with the wingtips for less vortex and higher lift-drag ratio

Light Weight Evolution - A Light Pack

Weight reduces 23% ~ 54%

The new forming craft developed by T-MOTOR R&D team is adopted to the 3rd generation propellers for 30%+ reduction in weight, lower moment of inertia, less motor vibration and, ultimately, longer flight time

New Prop cover Plate 10% lighter

Protection Evolution - Propeller Protection

Elaborately designed bags to protect the propellers from scratch during transportation and storage.

Additional Information

Manufacturer

Item information	Value
Manufacturer:
SKU:	307
GTIN:	6971360353768

Manufacturer information:

T-Motor

http://store-en.tmotor.com/

Specifications

Model NO.: 24 x 7.20-10mm Hole
Weight (Single Blade): 37g
Diameter: 24 inch (609.6mm)
Pitch: 7.2 inch (182.88mm)
Recommended Thrust / RPM: 3 ~ 7kg / 3020 ~ 4590 RPM
Ambient Temperature: -40°C ~ 65°C
T-MOTOR Series: 2blades integrated
Package Weight: 503.4g
Package Size: 646 x 95 x 58mm
Material: CF + Epoxy
Recommended Max. Thrust / RPM: 13kg / 6170 RPM
Storage Temperature / Humidity: -10°C ~ 50°C / < 85%

Warning

Prop marked with "L" is for CW which "R" for CCW (aerial view)
Please be careful when using the propellers as the spinning propellers may cause serious injury.
The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond the limits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users' account.
Please make sure all the accessories are mounted properly.
Please check on the propellers before flight and make sure they are in good conditions. Please replace propellers with new ones if fault is found with them.
For storage, please keep them away from hostile environment including but not limited to that of H₂O, SO₂, NO₂, Cl₂, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40°C at less than 80% humidity,
Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
Please use the propellers in compliance with local laws and regulations.
