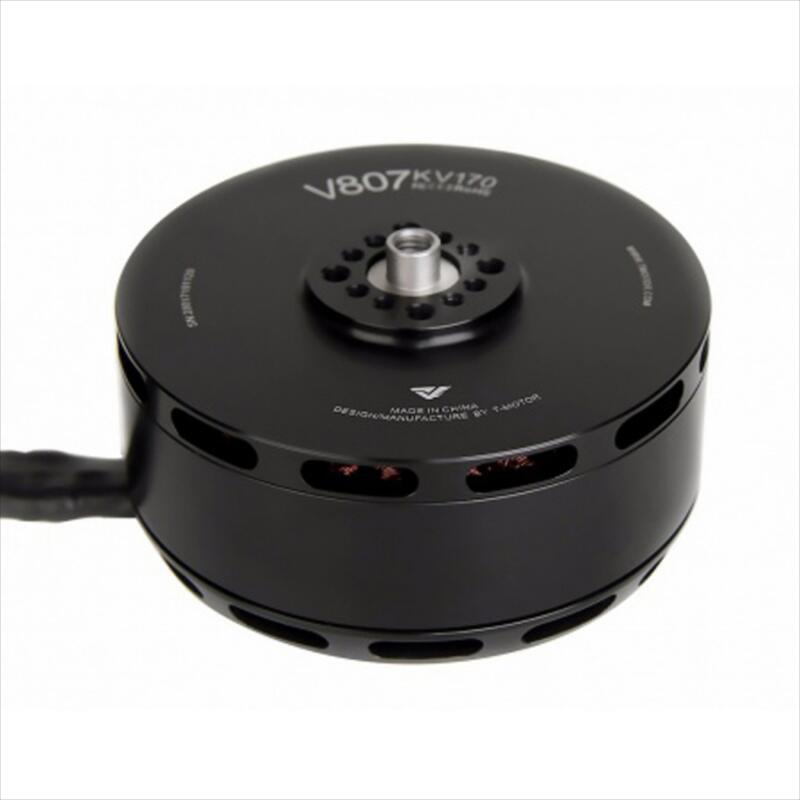

T-Motor V807 KV170 Bürstenloser Elektromotor

£ 256,92
incl. 19% VAT , plus shipping costs

High-quality T-Motor brushless external rotor motor from the new T-Motor VTOL, which was developed specifically for use in VTOL applications.


The motors are robustly built and designed for high thrust values.




Currently out of stock
Delivery time: ca. 3 weeks

VTOL Series - Fast Takeoff, Stable Landing



The V series includes motors specifically designed for VTOL power systems. They feature abundant power, a high thrust-to-weight ratio, strong overload capacity, and environmental adaptability, ensuring a safe flight in every mission!

  • Stable & Reliable
  • IP45 Protection Class



Recommended solution for the V807 VTOL composite wing:

  • VTOL Motor / KV: V807 KV170
  • VTOL Battery (Lipo) / Voltage: 12S (4.2 V/cell) / 42-52 V
  • Thrust Motor: 65-80 CC
  • VTOL Propeller: G27 x 8.8 / G28 x 9.2 / G29 x 9.5
  • VTOL Thrust per Motor: 7.5-10 kg
  • Thrust Propeller: 22-24 inches
  • VTOL ESC: FLAME 180A 12S V2.0
  • Maximum Takeoff Weight (MTOW) (Quad): 30-40 kg

Note: A performance loss of 25% should be considered for coaxial configurations.





  • Maximum Thrust: 21 kg - Sufficient Power Reserve
  • No need to replace the power setup in environments below 3000 meters altitude.





Optimized Features:

  • Special high-temperature resistant enameled wire and high-temperature resistant curved magnets enhance passive heat resistance.
  • Centrifugal fan design improves the motor's active heat dissipation capacity.
Item information Value
Manufacturer: T-Motor
SKU: TMOM510
GTIN: 4250902359782

Manufacturer information:

T-Motor

Specification



  • Model No. / KV: V807 KV170
  • Motor Size (mm): Ø88.5 x 46.4
  • Stator Technology: Anti-rust treatment; 180°C high temperature-resisting coatings
  • Configuration: 24N28P
  • Shaft Diameter (mm): IN: 12 OUT: 8
  • Bearing: Imported 6901ZZ
  • Magnet Temperature Resistance Grade: Class E 150°C
  • Lead (mm): 12AWG x 1000
  • Enameled Wires Temperature Resistance Grade: Class C 220°C
  • Coil Withdraw Voltage: 500V/5s
  • Rotor Dynamic Balance Standard: ≤ 5Mg
  • IP: IP35



  • KV Value: KV170
  • Idle Current (18V): 3.0A
  • Peak Current (A): 150A / Continuous 180s
  • Max. Power (W): 6800W / Continuous 180s
  • Internal Resistance (mΩ): 40
  • Battery (Lipo) / Voltage Recommendation: 12S (4.2V/Sl) / 42-52V
  • ESC Recommendation: FLAME 180A 12S V2.0
  • Propeller Recommendation: G27 x 8.8 / G28 x 9.2 / G29 x 9.5
  • Motor Weight (g): 650g (800g Weight incl. Cables)
  • Package Weight (g): 1000g





Item No. Prop Throttle Voltage (V) Thrust (g) Torque (N*m) Current (A) RPM Input power (W) Efficiency (g/W) Operating Temperature (°C)

V807

KV170

 G27 x 8.8 40% 47.76 4047 1.39 10.41 2732 497.06 8.14

107°C

(Ambient temperature: 22°C)
45% 47.69 5059 1.70 13.75 3021 655.50 7.72
50% 47.57 6445 2.17 19.81 3383 942.21 6.84
55% 47.42 7792 2.56 26.23 3699 1243.82 6.26
60% 47.30 9125 2.94 32.61 3993 1542.46 5.92
65% 47.06 10968 3.47 43.88 4362 2065.07 5.31
70% 46.90 12248 3.84 52.04 4602 2440.62 5.02
75% 46.69 13716 4.28 62.32 4867 2909.41 4.71
80% 46.49 14969 4.67 71.51 5077 3324.48 4.50
90% 46.04 17604 5.45 92.79 5445 4271.76 4.12
100% 45.52 19849 6.12 116.62 5785 5308.27 3.74
G28 x 9.2 40% 47.73 4372 1.56 11.04 2698 527.22 8.29

128°C

(Ambient temperature: 22°C)
45% 47.65 5443 1.88 14.75 2988 702.90 7.74
50% 47.52 6915 2.37 21.39 3346 1016.23 6.81
55% 47.37 8307 2.77 28.13 3659 1332.57 6.24
60% 47.25 9702 3.17 34.67 3943 1637.97 5.92
65% 47.09 11073 3.57 42.37 4199 1995.01 5.55
70% 46.82 12865 4.11 55.21 4538 2584.99 4.98
75% 46.61 14442 4.56 65.73 4784 3063.87 4.71
80% 46.40 15717 4.95 75.55 4983 3505.38 4.48
90% 45.93 18275 5.74 97.82 5345 4492.59 4.07
100% 45.34 20721 6.46 124.56 5649 5647.55 3.67
G29 x 9.5 40% 47.69 5070 1.87 12.97 2620 618.39 8.20 HOT
45% 47.59 6276 2.24 17.37 2897 826.77 7.59
50% 47.42 7916 2.84 25.28 3240 1199.04 6.60
55% 47.26 9558 3.34 33.51 3554 1584.03 6.03
60% 47.08 11083 3.82 42.40 3819 1996.30 5.55
65% 46.93 12433 4.23 49.99 4042 2346.17 5.30
70% 46.62 14312 4.83 65.04 4338 3032.08 4.72
75% 46.33 15888 5.31 78.22 4552 3624.20 4.38
80% 49.09 17138 5.71 89.68 4727 4133.43 4.15
90% 45.54 19498 6.46 115.33 5024 5251.58 3.71
100% 44.71 20997 6.93 151.70 5200 6782.02 3.10

Notes: Motor temperature is the motor surface temperature after running on 80% for 10 mins.

(Based on T-MOTOR test bench(es), all data are for reference only. T-MOTOR reserves the right of final interpretation.
