RFDesign - RFD 868x Bundle

Artikel zurzeit vergriffen
  • Reichweite bis zu mehr als 40km (abhängig von Antennen, etc.)
  • 1W (+30dBm)
  • Frequenz 868 - 869 MHz
  • Die volle Sendeleistung von 1W darf ohne entsprechende Lizenz nicht verwendet werden. Bitte erkunden Sie sich nach der max. erlaubten Leistung für das Frequenzspektrum

Allgemein

Das RFD 868x Bundle von RFDesign. Enthält neben Antennen und Kabel zwei RFD868+ Long Range Modem mit 1 Watt Sendeleistung. Dies ermöglicht Reichweiten bis über 40km. Die Software "SiK" ist eine Open Source Entwicklung. Ein Boot Loader und Schnittstelle stehen zur Verfügung für eine Anpassung der Model Firmware über den Serial Port.


Features

  • Frequenz Spektrum: 868-869 MHz
  • Sendeleistung: 1W
  • Übertragungsraten: 2 - 500 kbit/sek.
  • UART Übertragungsrate: 9600 - 921k baud
  • Empfänger Empfindlichkeit: > 121 dBm
  • Abmaße: 30 x 57 x 12,8mm
  • Gewicht: 14,5g
  • Betriebsspannung: 5V bei 800mA
  • Betriebstemperatur: - 40 bis 80°C

Schnittstellen

  • RF : 2 x RP-SMA connectors
  • Serial: Logic level TTL (+3.3v)
  • Power: +5v, ~800mA max peak (at maximum transmit power)
  • GPIO: 6 General purpose IO (Digital, ADC, PWM capable).

Spezifikationen

  • Frequency Range:  868-869 MHz
  • Output Power: 1W (+30dBm), controllable in 1dB steps ( +/- 1dB @=20dBm typical )
  • Air Data transfer rates: 4, 8, 16, 19, 24, 32, 48, 64, 96, 128, 192 and 250, 500 kbit/sec ( User selectable, 64k default )
  • UART data transfer rates: 9600, 19200, 38400, 57600, 115200, 400k, 921k baud  ( User selectable, 57600 default )
  • Output Power: 1W (+30dBm)
  • Receive Sensitivity: >121 dBm at low data rates, high data rates (TBA)
  • Size: 30 mm (wide) x 57 mm (long) x 12.8 mm (thick) - Including RF Shield, Heatsink and connector extremeties
  • Weight: 14.5g
  • Mounting: 3 x M2.5 screws, 3 x header pin solder points
  • Power Supply: +5 V nominal, (+3.5 V min, +5.5 V max), ~800 mA peak at maximum power
  • Temp. Range: -40 to +85 deg C, tested operational from -73 to +123 deg C°

Software

Note: Firmware for the RFD868 is the same as RFD900, the board identity is defined in the bootloader. The correct file to upgrade a RFD868 is RFDSik Vx.xx rfd900p.ihx

The software solution is an open source development called "SiK" originally by Mike Smith and improved upon by Andrew Tridgell and RFDesign. A boot loader and interface is available for further development and field upgrade of the modem firmware via the serial port.

Most parameters are configurable via AT commands, Eg. baud rate (air/uart), frequency band, power levels, etc., please see the 3DR wiki for commands below for now.

V2.x firmware has been updated to support multipoint networking on the RFD868/900.

V1.x (non multipoint) is suitable for point to point links - the sourcecode is located at: https://github.com/RFDesign/SiK

The user manual / datasheet can be found here : RFD900 Datasheet

A software manual for SiK firmware is here : RFD868/900 Software manual

RFD868/900 configuration tool and firmware repository: RFDesign Files

3DR/RFD868,900 compatible configuration tool : http://vps.oborne.me/3drradioconfig.zip

Integrated support for configuring the RFD868/900 radios is supported by APM Planner, with other GCS solutions in development.

The default settings are at 57600 baud, N, 8, 1, and 64k air data rate.

  • Software features include:
  • Frequency hopping spread spectrum (FHSS)
  • Transparent serial link
  • Point to Point, or Multipoint networking
  • Configuration by simple AT commands for local radio, RT commands for remote radio
  • User configurable serial data rates and air datarates
  • Error correction routines, Mavlink protocol framing (user selectable)
  • Mavlink radio status reporting (Local RSSI, Remote RSSI, Local Noise, Remote Noise)
  • Automatic antenna diversity switching on a packet basis in realtime
  • Automatic duty cycle throttling based on radio temperature to avoid overheating

Compliance

  • EN: The modem is designed for system integrators who will integrate the modem into their own projects and product prototypes. The user is responsible for compliance with local regulations for radio transmitters.
  • The RFD868 is designed to be compliant with the following standards:
    • FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
    • AS/NZS 4268:2012 (Radio equipment and systems – short range devices)



  • DE: Das modem ist für Systemanwender entworfen, welche das Modem in ihre eigenen Projekte und Produkt Prototypen integrieren. Der Nutzer ist verantwortlich für die ordnungsgemäße Anwendung unter den lokalen Regulierungen für Radio Transmitter/Funksender/Frequenzen.
  • Der RFD868 erfüllt die folgenden Normen:
    • FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
    • AS / NZS 4268: 2012 (Radio equipment and systems – short range devices)

Lieferumfang

  • 2 x RFD868x Modems

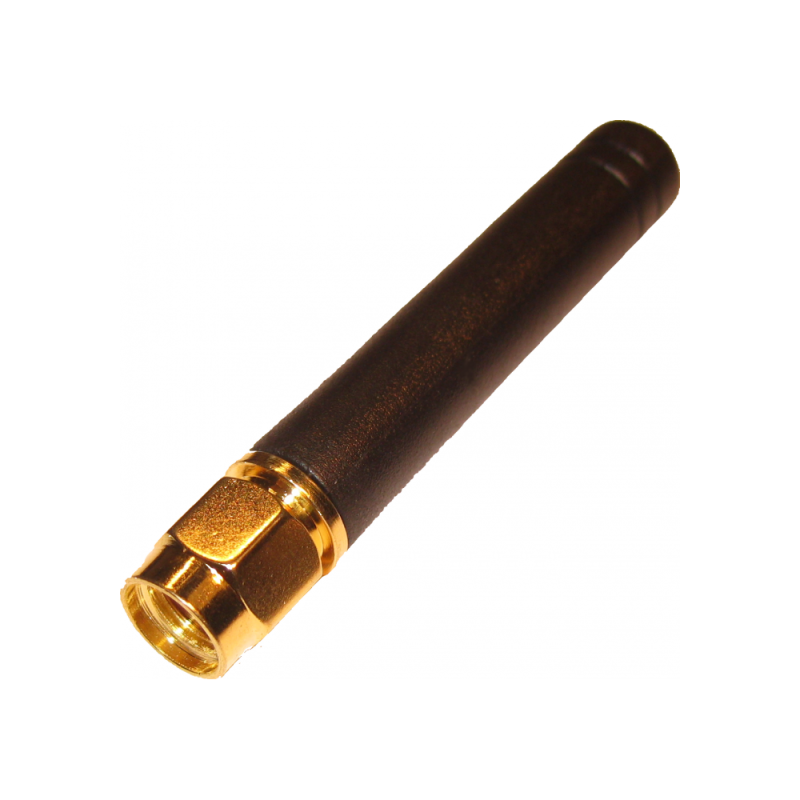

  • 1 x Antenna, 868-900MHz Quarter wave monopole 2.1dBi
  • 1 x Antenna, 868-900MHz Right Angle Quarter wave monopole 2.1dBi
  • 4 x Antennas, 868-900MHz Half wave dipole 3dBi
  • 1 x FTDI USB cable

Zusätzliche Informationen

Hersteller:
Artikelnummer: 133
GTIN: 4251935114287
