Hex/ProfiCNC - Mini Carrier Board for The Cube (Pixhawk 2.1)

General

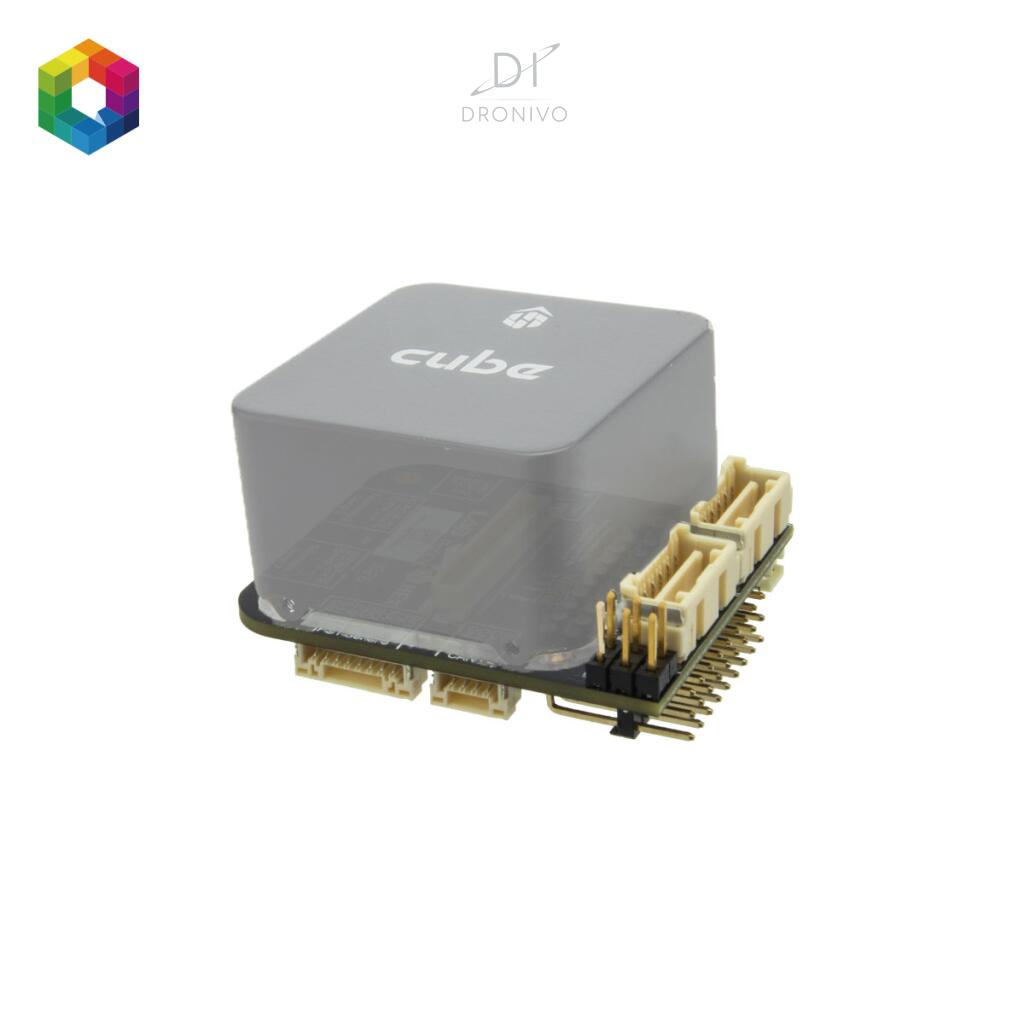

The Mini Carrier Board from Hex Technologies / ProfiCNC for particularly compact designs. With the DF17 Standard Connector all "The Cubes" can be used. Particularly space-saving in combination with The Cube Purple Mini.

Functionality

  • Dual power input (for redundant energy supply, switches to another if one source fails)
  • Power Distribution (limits the current on each connector to prevent overload)
  • Voltage Protection (over and under voltage protection)
  • Mini Carrier Board Interface ModelPorts
  • Corresponding Connecter Model

Ports

Corresponding Connecter Model

GPS1

JST-GH 1.25 mm (8-pin)

GPS2

JST-GH 1.25 mm (6-pin)

TELEM1

JST-GH 1.25 mm (6-pin)

TELEM2

JST-GH 1.25 mm (6-pin)

I2C

JST-GH 1.25 mm (4-pin)

CAN2

JST-GH 1.25 mm (4-pin)

POWER1

Molex CLIK-Mate 2 mm (6-pin)

POWER2

Molex CLIK-Mate 2 mm (6-pin)

BUZZER

DF13 1.25 mm (2-pin)

In the Box

  • Mini Carrier Board für The Cube

"The Cube" flight controller in the photo is not included.
