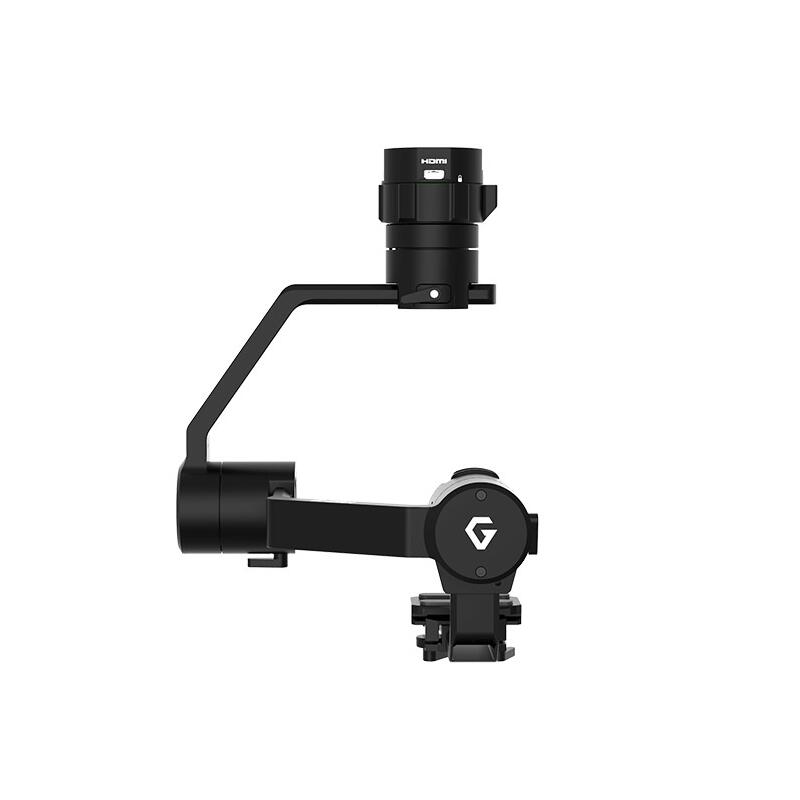

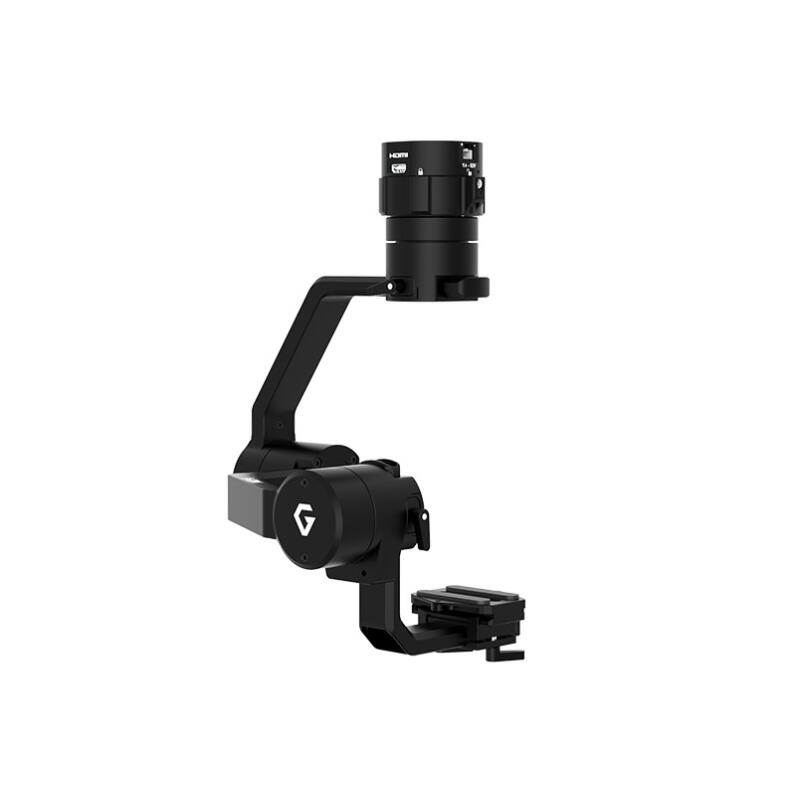

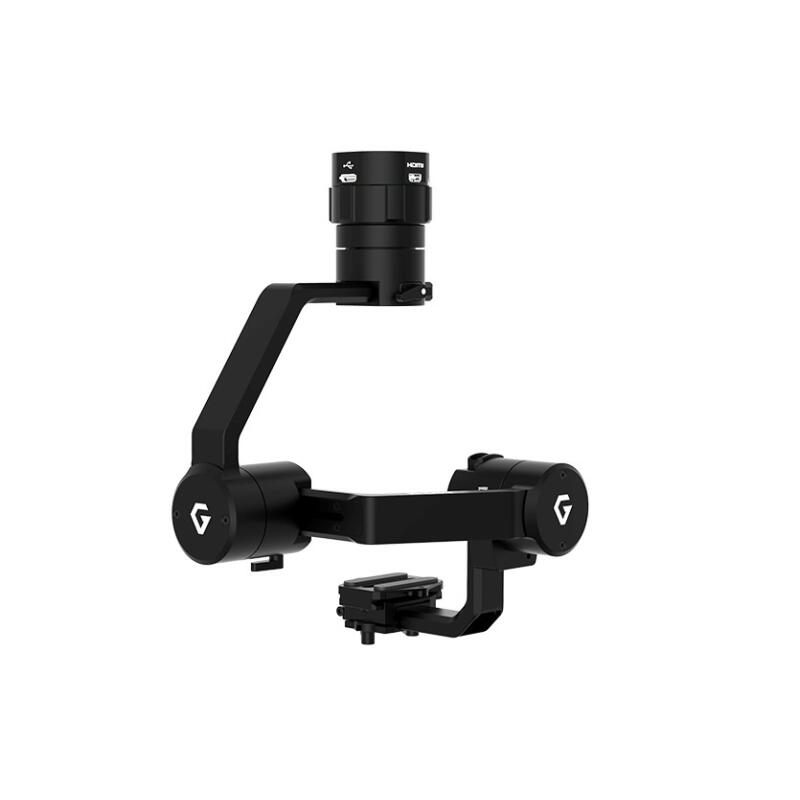

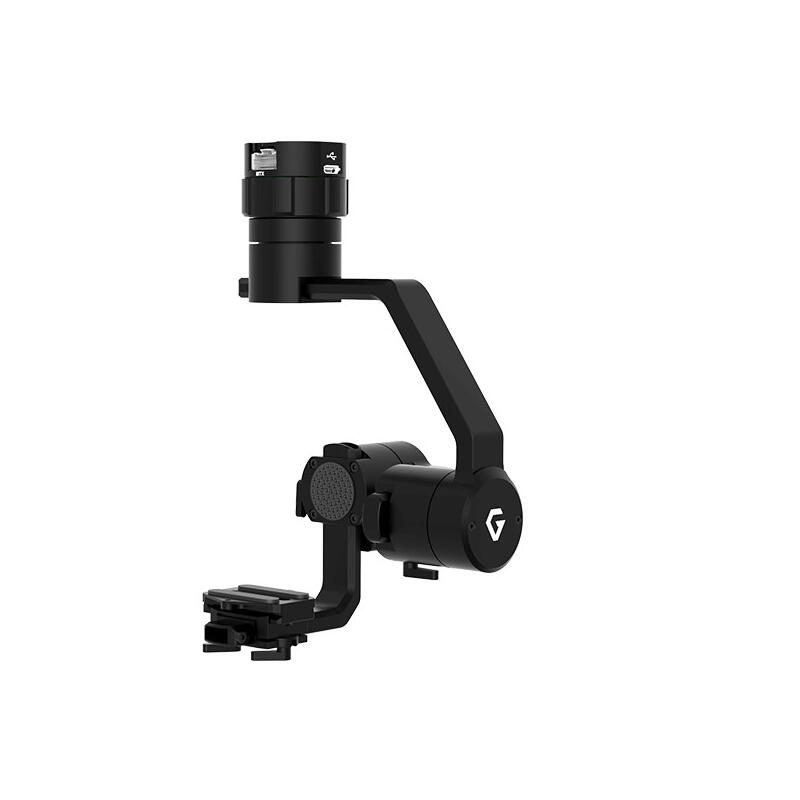

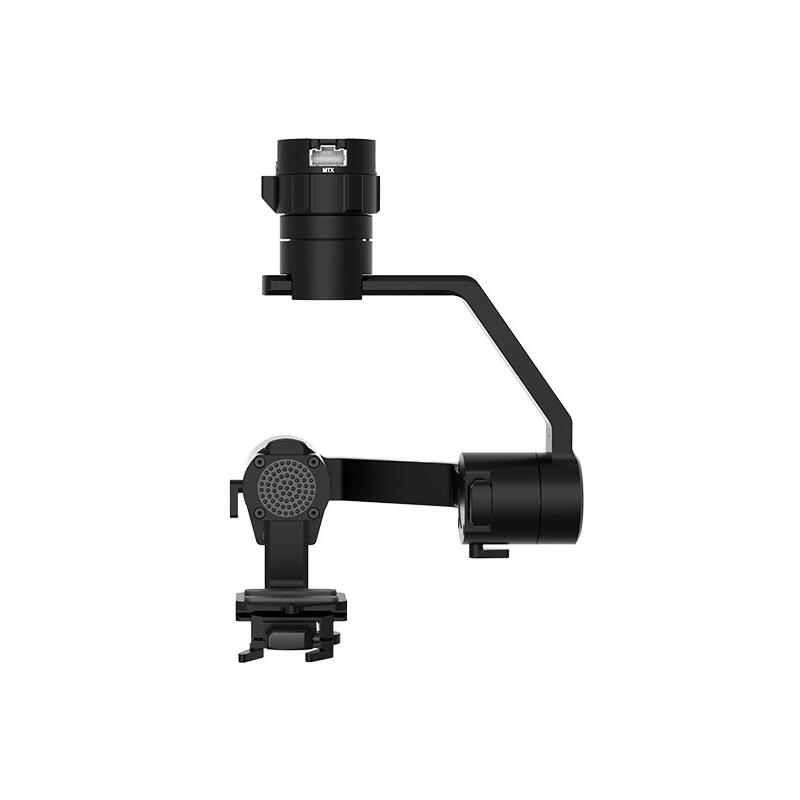

Gremsy - MIO Gimbal

1664,99 €
incl. 19% VAT , Free shipping (Höherversicherung 2.500 €)

Mio gimbal is the next-generation of 3-axis compact camera stabilizer that delivers robust performance for industrial uses.
Featuring a compact and lightweight design, Mio is intended to integrate into professional aerial systems for industrial and commercial uses.

Low stock level

Delivery time: 2 Workdays


DIMENSIONS & CAMERA CAGE


CAMERA COMPATIBILITY

Flir DUO Pro R Flir Vue Pro Flir Vue Sony R10C
Sony QX1 Rededge MX Sony RX0 I, II
Rededge MX Sony RX0 I, II

GENERAL

Built-In Functions
  • 1. Operation Modes
    • Motor ON/OFF
    • Lock mode
    • Follow mode / Mapping mode
    • Inverted mode/ Front mode
  • 2. Temperature Sensor
  • 3. Gremsy Specialized Gimbal Drive Motors with Encoders
  • 4. Micro USB Connection
  • 5. Gremsy Advanced 32-Bit high performance ARM microprocessor
  • 6. S-Bus/PPM Receiver Supported

MECHANICAL & ELECTRICAL CHARACTERISTICS

Working Current
  • Static current: 400mA (@12V)
  • Dynamic current: 800mA (@12V)
  • Locked motor current: Max 3.5A (@12V)

Operating Temperature
  • 5° F ~ 120° F (-15° C ~ 50° C)

Weight
  • 0.55 lbs (250 g)

Gimbal Dimension
  • 99(W) x 120(D) x 175(H)

PERIPHERAL

Camera Tray Dimensions
  • Maximum depth from the center of gravity on camera base plate: 43mm
  • Maximum height measured from top of camera base plate: 70mm
  • Maximum width: 85mm

Input Power
  • 14-52V

Operating Power
  • 12V

Connections
  • USB 2.0, CAN, UART, S-bus, PPM, Bluetooth

PC Assistant Software Requirements
  • Windows XP or above; Mac OS X 10.9 or above


Mobile Assistant Software Requirements
  • iOS 7.1 or above; Android 4.3 or above

WORKING PERFORMANCE

Maximum Payload
  • 0.88 lbs (400g)

Angular Vibration Range
  • ± 0.02°

Maximum Controlled Rotation Speed
  • Pan axis: 100°/s
  • Tilt axis: 100°/s
  • Roll axis: 100°/s

Mechanical Endpoint Range
  • Pan axis control: ±338°
  • Tilt axis control: -200° to +135°
  • Roll axis control: -265° to +75°

Controlled Rotation Range
  • Pan axis control: ±325°
  • Tilt axis control: ± 120°
  • Roll axis control: ± 40°
