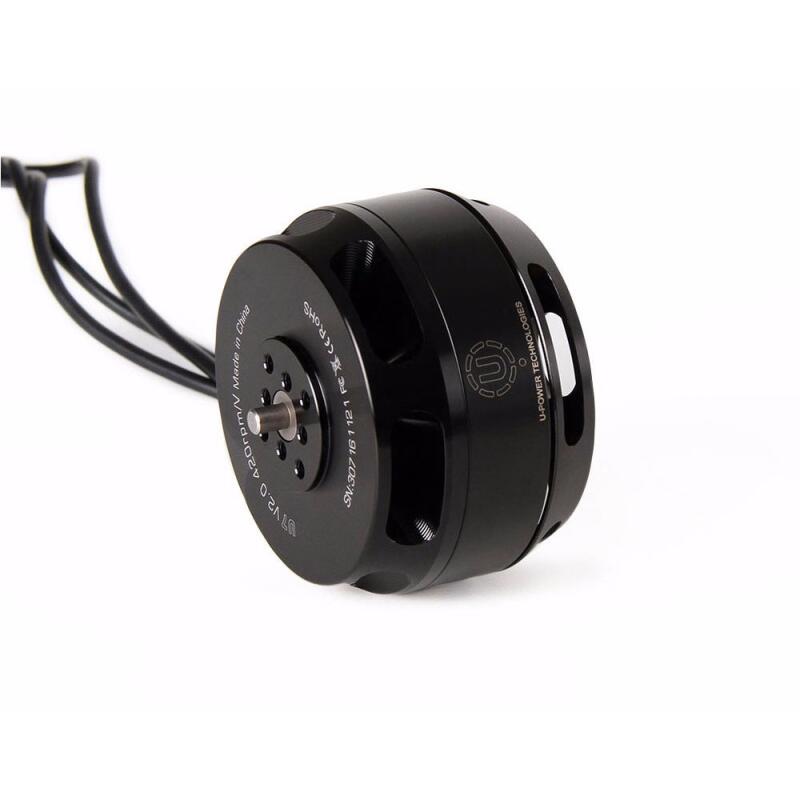

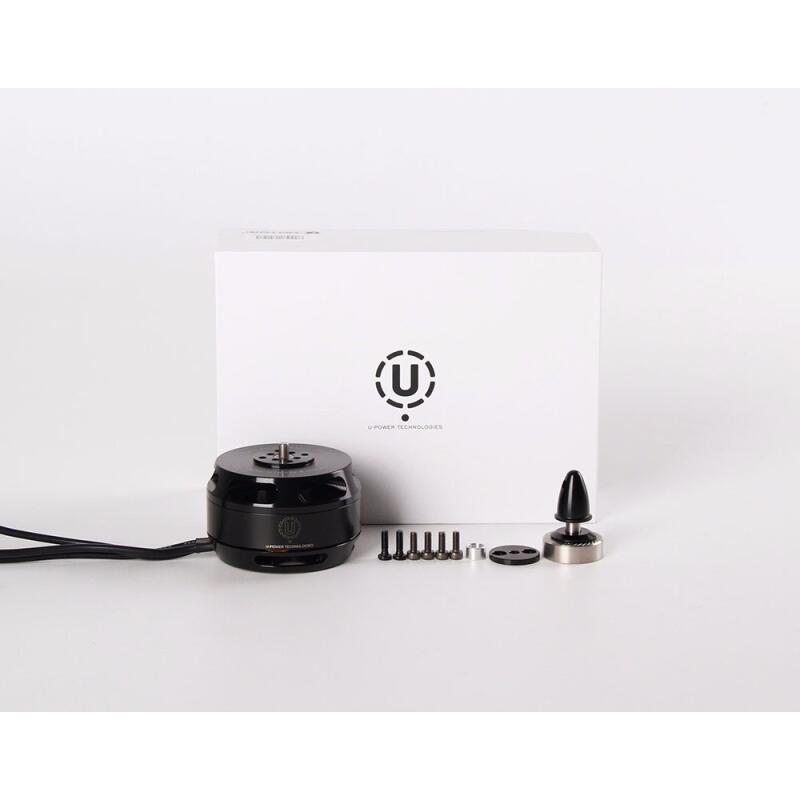

T-Motor U7-V2.0 - Brushless Electric Motor KV490

T-Motor U7-V2.0 - Brushless Electric Motor KV490

149,90 €

incl. 19% VAT , plus

Water- and Dust- resistant
Precision Bearing

Motor Constant KV
KV280 KV280KV420 KV420KV490 KV490

Pcs

Bestellung auf Anfrage

Delivery time: ca. 3 weeks

Brushless Electric Motors from the Market Leader of Propulsion Systems for Drones/UAVs

T-Motor offers Electric Motors of the highest Quality and Industrial Grade.
First Class Efficiency and Reliability are the Result of excellent Processing and Components. Manufacturers of UAVs for industrial operations can hardly do without the brand T-Motor.

Stable / Durable / Powerful - U7 Waterproof Power Type

For AUW 10-24kg Multi-copter

Industrial Grade
Dustproof
Waterproof

Special Side Hole Design

Special design ensures swift airflow. Motor cools 2.5 times faster than others. Six holes beveling upward sparkles motor with waterproof and sand-resistant features.

Abnormal Shaft

A special screw is used for stator and rotor installation, avoiding looseness of circlip.

High-Quality Varnished Wire - Larger Bearing, Lower Noise

Imported oxygen-free copper coil which can tolerate temperatures of 180°C is employed to enhance short circuit resistance. Adoption of imported EZO bearing prolongs the service life to over 1600 hours under trouble-free operation. EZO bearing enables motor run more smoothly and longer with lower noise.

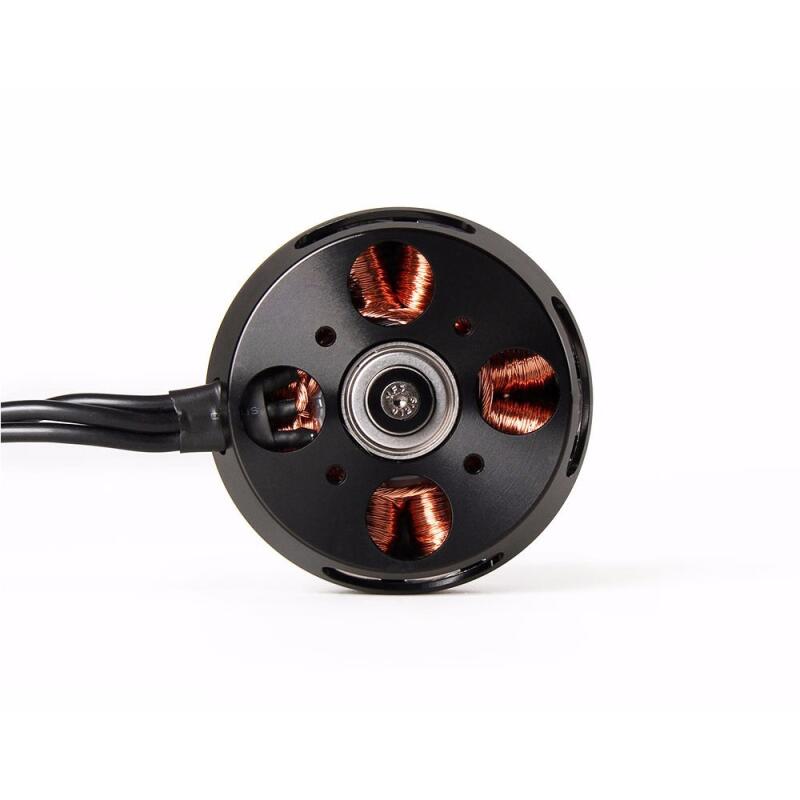

High-Standard Silicon Steel Sheet Precision Winding

The precision winding ensures the tightness of coil and slot. It helps reduce the copper loss while improve the utilization. Advanced 0.2mm silicon steel sheet reduces heat and eddy, thus improves the efficiency.

Recommendation

	2KG/ARM U7-280KV	2.5KG/ARM U7-490KV	3KG/ARM U7-420KV
Recommended prop	T-MOTOR CF 20 x 6	T-MOTOR CF 16 x 5.4	T-MOTOR CF 18 x 6.1
Voltage	24V	24V	24V
AUW	Quadcopter - 8kg Hexacopter - 12 kg Octocopter - 18kg	Quadcopter - 10kg Hexacopter - 15kg Octocopter - 20kg	Quadcopter - 12kg Hexacopter - 18kg Octocopter - 24kg
