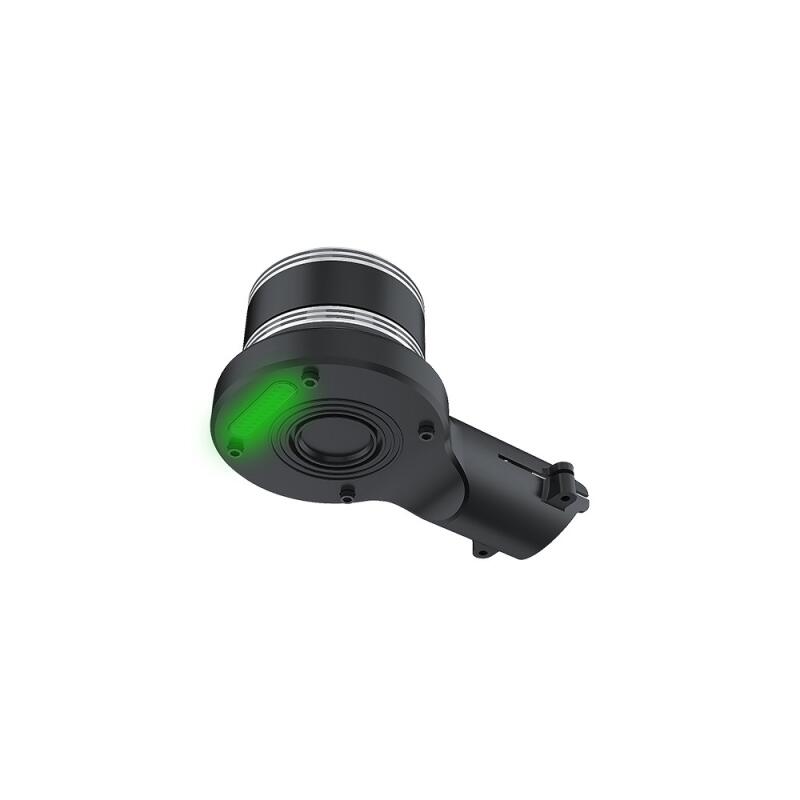

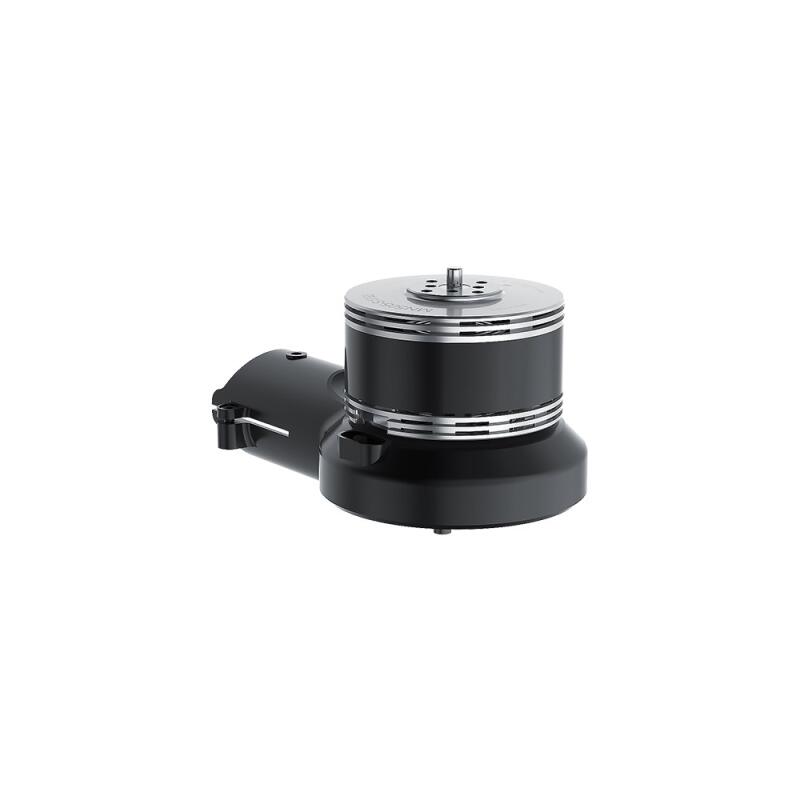

T-Motor MN505-X
X-standard
This is an arm set series for industrial drones with motors, FOC ESCs and X carbon props integrated in one.
(The tube sizes available are 30mm and 25mm with an adapter ring to switch from one to another.)
|
50-X | 60-X | 70-X | U8-X |
---|---|---|---|---|
Motor |
MN501-S MN505-S |
MN601-S MN605-S |
MN701-S MN705-S |
U8II U8Lite |
ESC |
Alpha 60A HV Alpha 40A LV Alpha 60A LV |
Alpha 60A HV Alpha 60A LV |
Alpha 80A HV Round |
Alpha 60A HV Alpha 60A LV |
Polymer Folding Propeller |
15", 20", 18", 22", 18" | 20", 22" | 26" | 28" |
Smart and Efficient
FOC (sine wave) ESCs are default match for the arm sets. The efficient, accurate and stable motor control from intelligent algorithm meets the demand of various applications.
(T-MOTOR square wave ESCs are available for custom arm sets)
High RPM, High Efficiency, Strong Power
X-carbon is a new patent polymer folding prop series of high RPM, high efficiency and strong power.
(X-carbon props are the default match. Other props from T-MOTOR are available)
LED light
The built-in LED light for better maneuverability.
Convenient installation
Free of complicated mounting process
Arm Set List
Arm Set | Compatible Tube Sizes | Motor | KV | Default ESC | Default Propeller | Propeller Options | Custom ESC |
---|---|---|---|---|---|---|---|
501-X |
25mm / 30mm (25mm = 30mm + adapter) |
MN501-S | KV240 | ALPHA 60A 12S V1.2 | MF1503 | P15 x 5, FA15.2 x 5 | FLAME 60A 12S |
KV300 | ALPHA 40A 6S | MF2009 | P20 x 6, FA20.2 x 6.6 | ALPHA 60A 12S V1.2, AIR 40A | |||
KV360 | ALPHA 40A 6S | MF1806 | P18 x 6.1, FA18.2 x 5.9 | ALPHA 60A 12S V1.2, AIR 40A | |||
505-X | MN505-S | KV320 | ALPHA 60A 6S | MF2211 | P22 x 6.6, FA22.2 x 7.2 | FLAME 60A 12S | |
KV380 | ALPHA 60A 6S | MF1806 | P18 x 6.1, FA18.2 x 5.9 | FLAME 60A 12S | |||
601-X | MN601-S | KV170 | ALPHA 60A 12S V1.2 | MF2009 | P20 x 6, FA20.2 x 6.6 | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | MF2009 | P20 x 6, FA20.2 x 6.6 | FLAME 60A 12S | |||
605-X | MN605-S | KV170 | ALPHA 60A 12S V1.2 | MF2211 | P22 x 6.6, FA22.2 x 7.2 | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | MF2211 | P22 x 6.6, FA22.2 x 7.2 | FLAME 60A 12S | |||
701-X | MN701-S | KV135 | ALPHA 80A 12S Round | / | P24 x 7.2 - 10mm Hole, G24 x 7.8, FA24.2 x 7.9 | / | |
705-X | MN705-S | KV125 | ALPHA 80A 12S Round | MF2614 | G26 x 8.5, FA26.2 x 8.5 | / | |
U8II-X U8 Lite-X |
U8II U8 Lite |
KV85 | ALPHA 60A 12S V1.2 | MF2815 | G28 x 9.2, FA28.2 x 9.2 | FLAME 60A 12S | |
KV100 | ALPHA 60A 12S V1.2 | MF2815 | G28 x 9.2, FA28.2 x 9.2 | FLAME 60A 12S | |||
KV150 | ALPHA 60A 6S | MF2815 | G28 x 9.2, FA28.2 x 9.2 | FLAME 60A 12S | |||
KV190 | ALPHA 60A 6S | MF2815 | G28 x 9.2, FA28.2 x 9.2 | FLAME 60A 12S | |||
P60-X | P60 | KV170 | FLAME 60A 12S | MF2211 | P22 x 6.6, G22 x 7.2 | / | |
KV340 | FLAME 70A 6S | MF2211 | P22 x 6.6, G22 x 7.2 | / | |||
P80-X | 30mm / 35mm or 40mm (Notify us your tube size) |
P80 | KV100 / KV120 | ALPHA 80A 12S | MF3016 | P30 x 10, G30 x 10.5 | FLAME 80A 12S FLAME 100A 14S |
6007-X | 25mm / 28mm (Notify us your tube size) |
MN6007 | KV160 | ALPHA 60A 12S V1.2 | MF2211 | FA22.2 x 7.2, NS22 x 6.6, P22 x 6.6 | FLAME 60A 12S |
KV320 | ALPHA 60A 6S | MF2211 | FA22.2 x 7.2, NS22 x 6.6, P22 x 6.6 | FLAME 60A 12S | |||
X-501 |
25mm / 30mm (25mm = 30mm + adapter) |
MN501-S | KV240 | ALPHA 60A 12S V1.2 | P15 x 5 | / | FLAME 60A 12S |
KV300 | ALPHA 40A 6S | P20 x 6 | / | ALPHA 60A 6S, AIR 40A | |||
KV360 | ALPHA 40A 6S | P18 x 6.1 | / | ALPHA 60A 6S, AIR 40A | |||
X-505 | MN505-S | KV320 | ALPHA 60A 6S | P22 x 6.6 | / | FLAME 60A 12S | |
KV380 | ALPHA 60A 6S | P18 x 6.1 | / | FLAME 60A 12S | |||
X-601 | MN601-S | KV170 | ALPHA 60A 12S V1.2 | P20 x 6 | / | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | P20 x 6 | / | FLAME 60A 12S | |||
X-605 | MN605-S | KV170 | ALPHA 60A 12S V1.2 | P22 x 6.6 | / | FLAME 60A 12S | |
KV320 | ALPHA 60A 6S | P22 x 6.6 | / | FLAME 60A 12S | |||
X-U8II X-U8 Lite |
U8II U8 Lite |
KV85 | ALPHA 60A 12S V1.2 | G28 x 9.2 | / | FLAME 60A 12S | |
KV100 | ALPHA 60A 12S V1.2 | G28 x 9.2 | / | FLAME 60A 12S | |||
KV150 | ALPHA 60A 6S | G28 x 9.2 | / | FLAME 60A 12S | |||
KV190 | ALPHA 60A 6S | G28 x 9.2 | / | FLAME 60A 12S | |||
X-701 | 30mm / 35mm (30mm = 35mm + adapter) |
MN701-S | KV135 | ALPHA 80A 12S Round | P24 x 7.2 - 10mm Hole | G24 x 7.8 | / |
X-705 | MN705-S | KV125 | ALPHA 80A 12S Round | G26 x 8.5 | / | / |
Note: Order qty should be an EVEN number.
