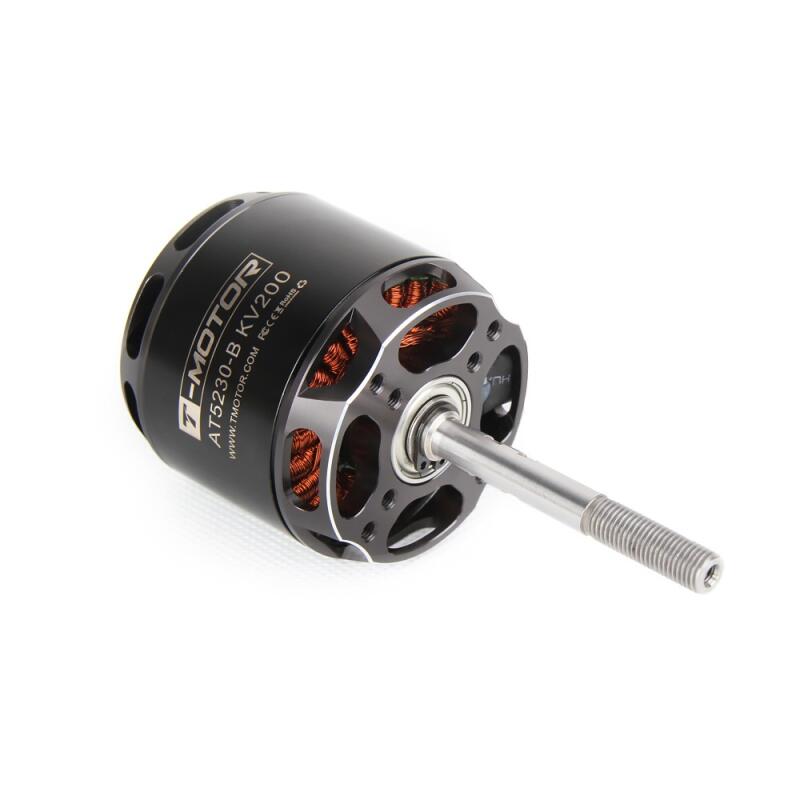

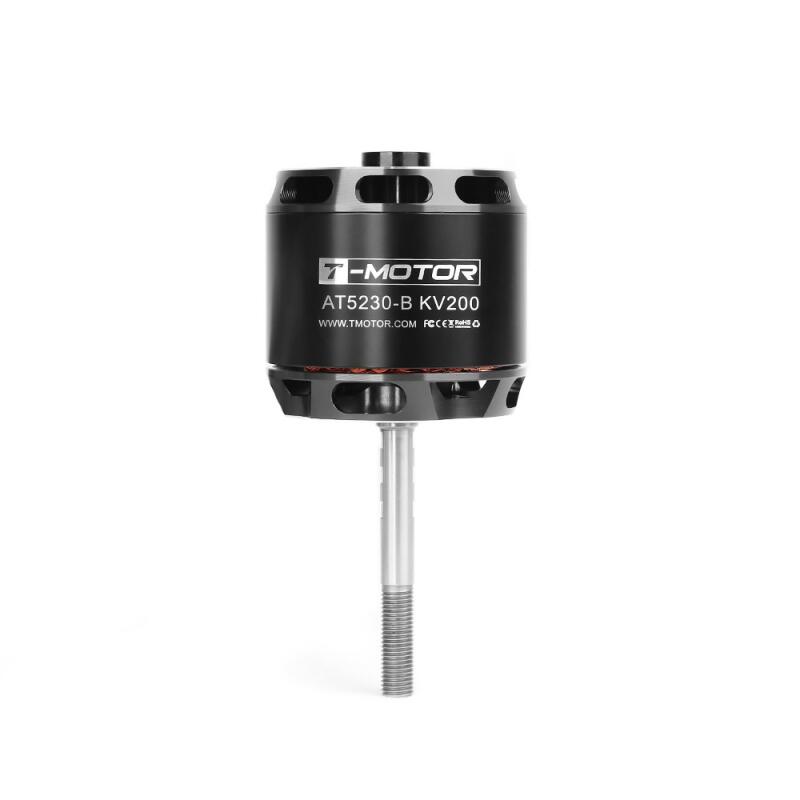

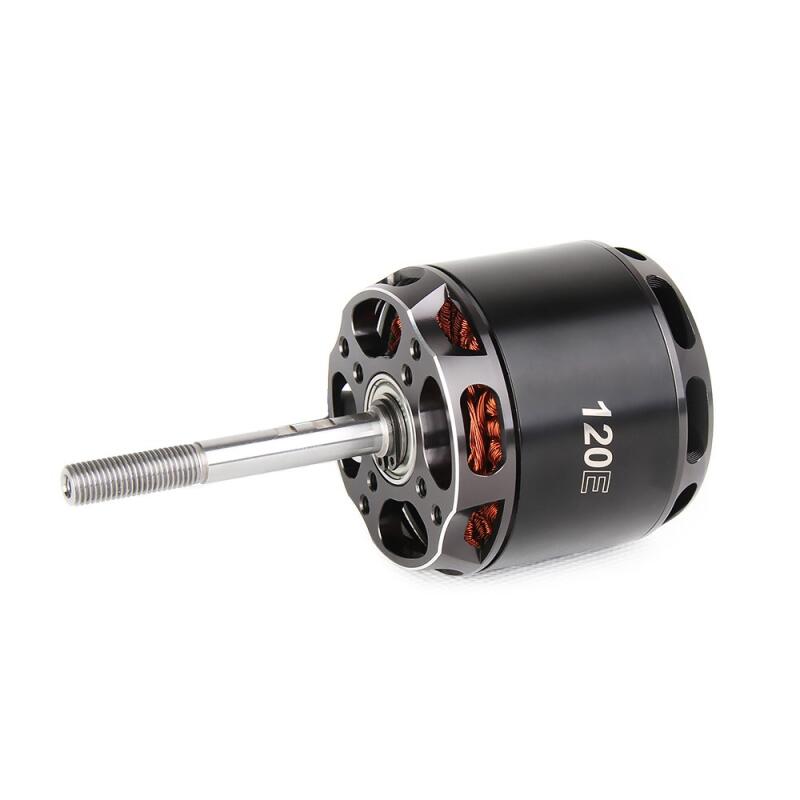

T-Motor AT5230-B Long Shaft Fixed-Wing Motor

149,00 €
incl. 19% VAT , plus shipping costs
  • AT52 Series Motors suitable for 90E-140E Aircrafts, corresponding to 20-25CC Gasoline Engine

  • Motor Constant KV

This item has variations. Please select the requested variation.

Bestellung auf Anfrage

General

T-Motors AT-Type Electric Motors are especially designed for fixed-wing applications. They have a high temperature resistancy and enable highest flight stability.



Powerful and balanced



Powerful output & Excellent cooling

The design with big torque and heat dissipation structure ensures the powerful flight and good heat dissipation performance



Safety & Long endurance

High temperature (220°C) Military-grade wire improves the high temperature resistance extending the working life time of the motor

  • High temperature
  • Working life



Excellent control and balance experience

Throttle linear, strong power and excellent balance ensures various and smooth flights

  • Strong power
  • Excellent balance



Durable and strong

High-quality imported bearings, combined with structural strength design ensures toughness for free fly.



Various Mounting Ways

The design with the front and rear shaft can be mounted in the front of or behind firewall of aircraft, both inside or outside of firewall are easy to handle

Manufacturer: T-Motor
SKU: 188
GTIN: 4251935113860
Content‍: 1,00 Pieces
Manufacturer information:
T-Motor

Spezifikationen

  • Test Item: Long Shaft KV200
  • Motor Dimensions: Ø60*130mm
  • Lead: Enameled Wire 100mm
  • Shaft Diameter:
  • IN: 10mm
  • OUT: 8mm
  • Idle Current (10V): 2.7A
  • Max. Power (180s): 3500W
  • Weight (Incl. Cable): 610g
  • Internal Resistance: 22mΩ
  • Configuration: 24N28P
  • Rated Voltage(Lipo): 6-12S
  • Peak Current (180s): 75A
  • Recommendation: /
Type Propeller Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)

Operating Temperature

(°C)

AT5230-B

Long Shaft

KV200

FALCON

20*10

40% 36.88 5.40 199.02 3032 0.460 1603 8.05

78

(Ambient Temperature:/)

45% 36.84 7.06 260.13 3378 0.561 1987 7.64
50% 36.78 9.60 353.20 3785 0.685 2488 7.05
55% 36.70 13.09 480.52 4211 0.837 3091 6.43
60% 36.63 16.86 617.35 4649 0.999 3750 6.08
65% 36.56 20.15 736.66 4971 1.131 4263 5.79
70% 36.45 24.81 904.39 5309 1.295 4918 5.44
75% 36.35 29.62 1076.71 5656 1.461 5585 5.19
80% 36.25 34.44 1248.34 5941 1.615 6214 4.98
90% 36.02 45.45 1637.06 6514 2.089 7553 4.61
100% 35.77 57.41 2053.49 6973 2.434 8905 4.34

FALCON

21*10

40% 36.85 6.17 227.25 2993 0.551 1899 8.36

86

(Ambient Temperature:/)

45% 36.81 8.07 297.08 3321 0.656 2346 7.90
50% 36.75 11.07 406.83 3716 0.896 2984 7.34
55% 36.67 14.89 546.11 4119 0.991 3652 6.69
60% 36.55 19.99 730.83 4567 1.212 4493 6.15
65% 36.46 24.19 882.01 4875 1.469 5148 5.84
70% 36.36 29.07 1056.84 5201 1.697 5868 5.55
75% 36.23 35.04 1269.71 5521 1.898 6707 5.28
80% 36.13 40.18 1451.84 5798 2.055 7330 5.05
90% 35.85 53.34 1912.21 6314 2.608 8884 4.65
100% 35.56 66.54 2366.34 6765 2.977 10167 4.30

FALCON

22*10

40% 36.84 6.98 257.14 2924 0.666 2212 8.60

102

(Ambient Temperature:/)

45% 36.78 9.27 340.87 3248 0.785 2733 8.02
50% 36.70 12.83 470.96 3634 1.041 3463 7.35
55% 36.61 17.30 633.17 4028 1.205 4210 6.65
60% 36.48 23.56 859.54 4470 1.479 5212 6.06
65% 36.39 27.79 1011.32 4753 1.720 5925 5.86
70% 36.26 33.81 1226.09 5067 1.979 6726 5.49
75% 36.12 40.68 1469.54 5367 2.216 7649 5.20
80% 35.99 46.54 1675.26 5624 2.397 8345 4.98
90% 35.67 61.48 2193.17 6105 2.852 10003 4.56
100% 35.35 76.51 2704.98 6518 3.339 11500 4.25



Note: Motor temperature is motor surface temperature @100% throttle running 3mins.

(Data above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)



Type Propeller Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency (g/W)

Operating Temperature

(°C)

AT5230-B

Long Shaft

KV200

FALCON

18*10

40% 44.27 5.74 254.19 3654 0.496 1681 6.61

83

(Ambient Temperature:/)

45% 44.23 7.45 329.50 4058 0.599 2079 6.31
50% 44.15 11.13 491.43 4679 0.751 2760 5.62
55% 44.07 14.49 638.51 5134 0.932 3315 5.19
60% 44.00 17.60 774.52 5551 1.089 3898 5.03
65% 43.94 20.84 915.83 5913 1.227 4453 4.86
70% 43.84 25.66 1124.70 6340 1.499 5209 4.63
75% 43.73 30.91 1351.62 6754 1.689 5892 4.36
80% 43.61 36.43 1588.96 7078 1.850 6249 3.93
90% 43.36 48.53 2104.20 7736 2.238 7296 3.47
100% 43.06 62.54 2692.85 8280 2.643 8111 3.01

FALCON

 19*10

40% 44.27 6.12 270.98 3609 0.546 1894 6.99

92

(Ambient Temperature:/)

45% 44.23 7.99 353.52 4010 0.653 2317 6.56
50% 44.13 12.47 550.33 4619 0.893 3190 5.80
55% 44.05 15.71 691.84 5048 1.007 3781 5.47
60% 43.98 19.51 858.14 5477 1.173 4473 5.21
65% 43.89 23.39 1026.35 5822 1.318 5069 4.94
70% 43.78 28.55 1250.05 6249 1.503 5841 4.67
75% 43.65 34.73 1516.66 6647 1.711 6712 4.43
80% 43.54 40.31 1755.18 6965 1.895 7455 4.25
90% 43.26 53.73 2324.24 7599 2.289 8993 3.87
100% 42.97 67.29 2891.43 8139 2.685 10263 3.55

FALCON

20*10

40% 44.24 6.89 304.73 3559 0.604 2200 7.22

100

(Ambient Temperature:/)

45% 44.20 8.93 394.77 3940 0.734 2711 6.87
50% 44.10 13.71 604.51 4540 0.961 3623 5.99
55% 44.01 17.55 772.57 4964 1.149 4365 5.65
60% 43.92 21.86 960.16 5400 1.336 5109 5.32
65% 43.83 25.99 1139.25 5749 1.501 5784 5.08
70% 43.72 31.56 1379.72 6145 1.712 6639 4.81
75% 43.57 38.29 1668.41 6535 1.934 7529 4.51
80% 43.45 44.35 1926.74 6849 2.137 8337 4.33
90% 43.13 59.00 2544.65 7462 2.573 10079 3.96
100% 42.80 74.31 3180.32 7973 2.990 11641 3.66



Note: Motor temperature is motor surface temperature @100% throttle running 3mins.

(Data above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)



Inhalt:

  • Motor x 1
  • Parts Bag x 1

Please check that your package contains all the above items before use, if something is missing, please contact online customer service or leave message to onlinesales@tmotor.com
