Instagrid - Link

£ 861,45

incl. 19% VAT , plus

Expand the capacity of your Instagrid ONE

With the Instagrid LINK, up to 3 Instagrid ONE units can be connected for more functionality and new, high-power applications.

Low stock level

Delivery time: 2 Workdays

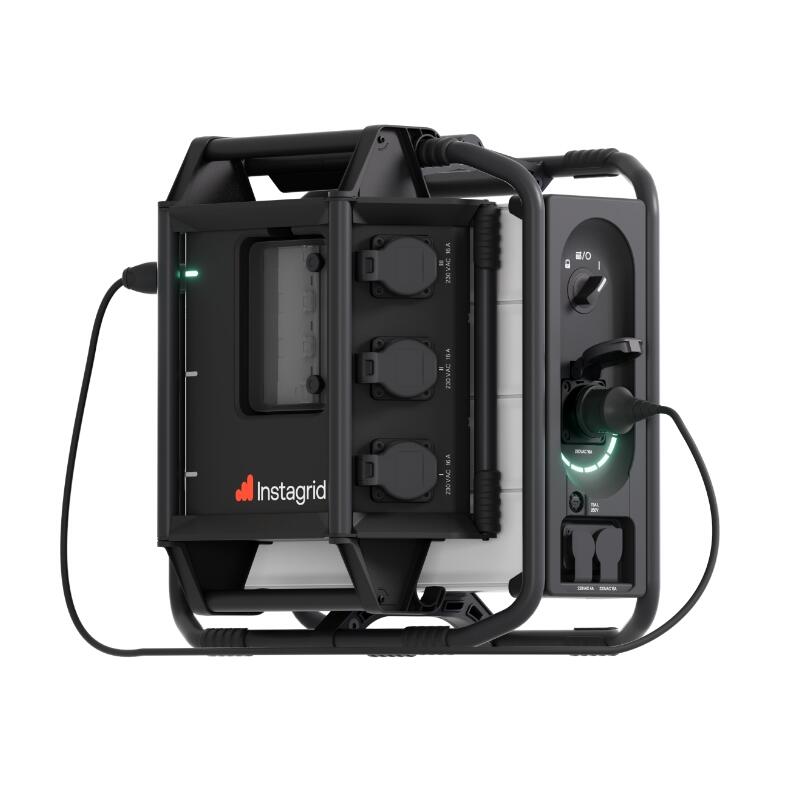

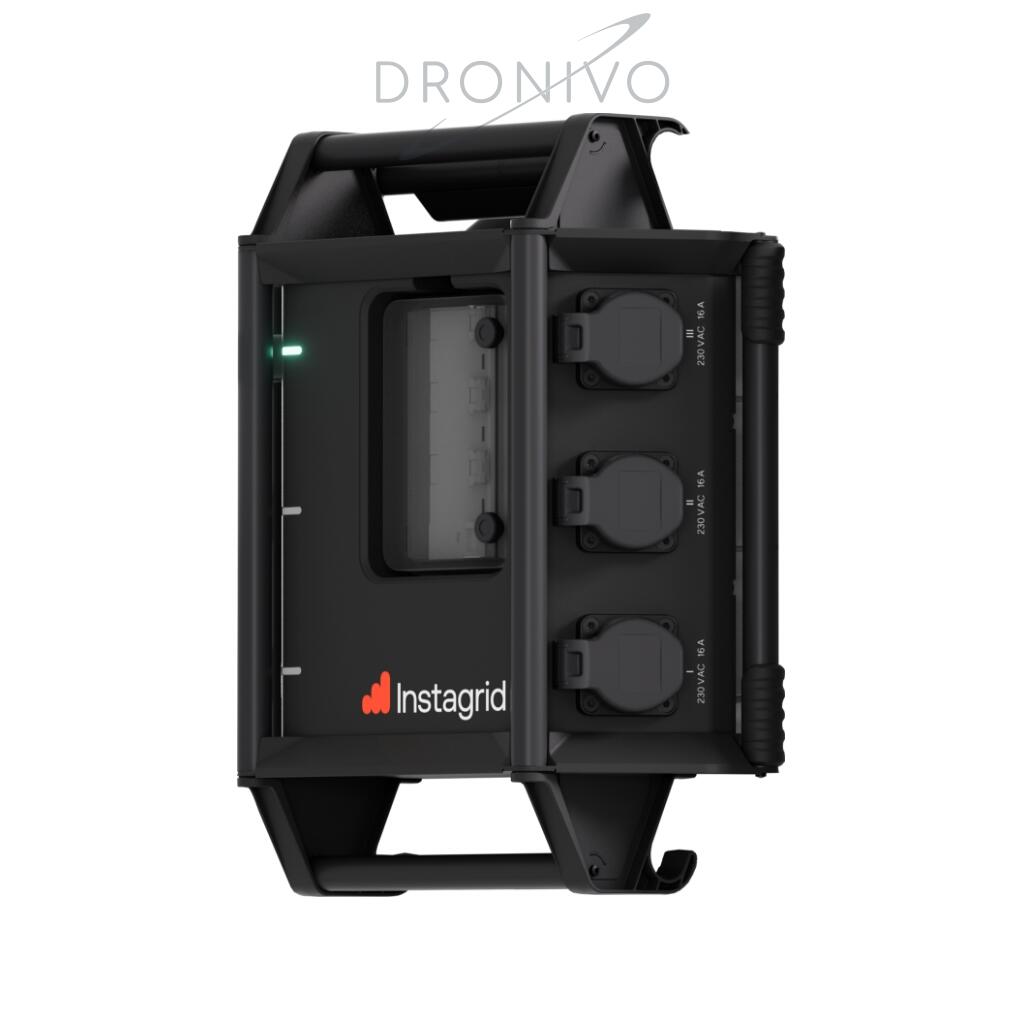

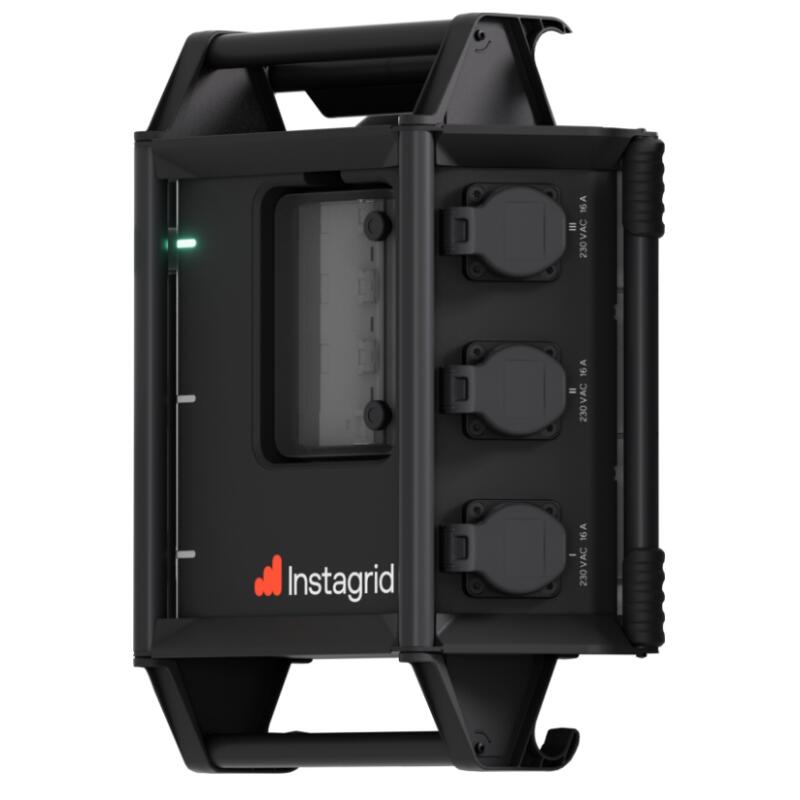

Instagrid LINK

Extension of the Instagrid IGONE - a powerful system.

Connect Instagrid LINK with up to three Instagrid ONE units for more functionality and new, high-power applications.

Advantages:

Island Mode
- Seamless exchange of Instagrid ONE units during ongoing operations
Triple Capacity
- Capacity increase up to 6.3 kWh
Power Supply for Critical Operations
- Ensures uninterrupted power supply for critical operations
Operation of Multiple Tools
- Parallel operation of multiple high-power tools

Item information	Value
Manufacturer:
SKU:	INSTA003
GTIN:	4251935116618

Manufacturer information:

Instagrid

https://instagrid.co/de

General Information

Weight: 4.5 kg
IP Rating: IP54
Protection Class: Class II / double insulated
Operating Temperature: -15°C to 40°C

Operation

Output Voltage: 230 V AC / 50 Hz
Output Current: 16 A
Switch Time: < 20 ms

Connections

Input Socket: 3 x Neutrik powerCON TRUE1TOP®
Output Socket (EU): 3 x CEE7/3 16 A
Output Socket (CH): 3 x T23s 16 A

Power Protection

Residual Current Device: 3 x 1P+N RCD type A, 30 mA
Circuit Protection: 1P B16
