This Power Distribution Board (PDB) is used for PM02, PM02D Power Module. Power modules with build-in power distribution such as the PM03, PM06, PM07 would not require this PDB.
There are two options, with or without XT30 pre-soldered. The option with XT30 pre-soldered goes perfectly with the ESC & Motor on the X500 V2.

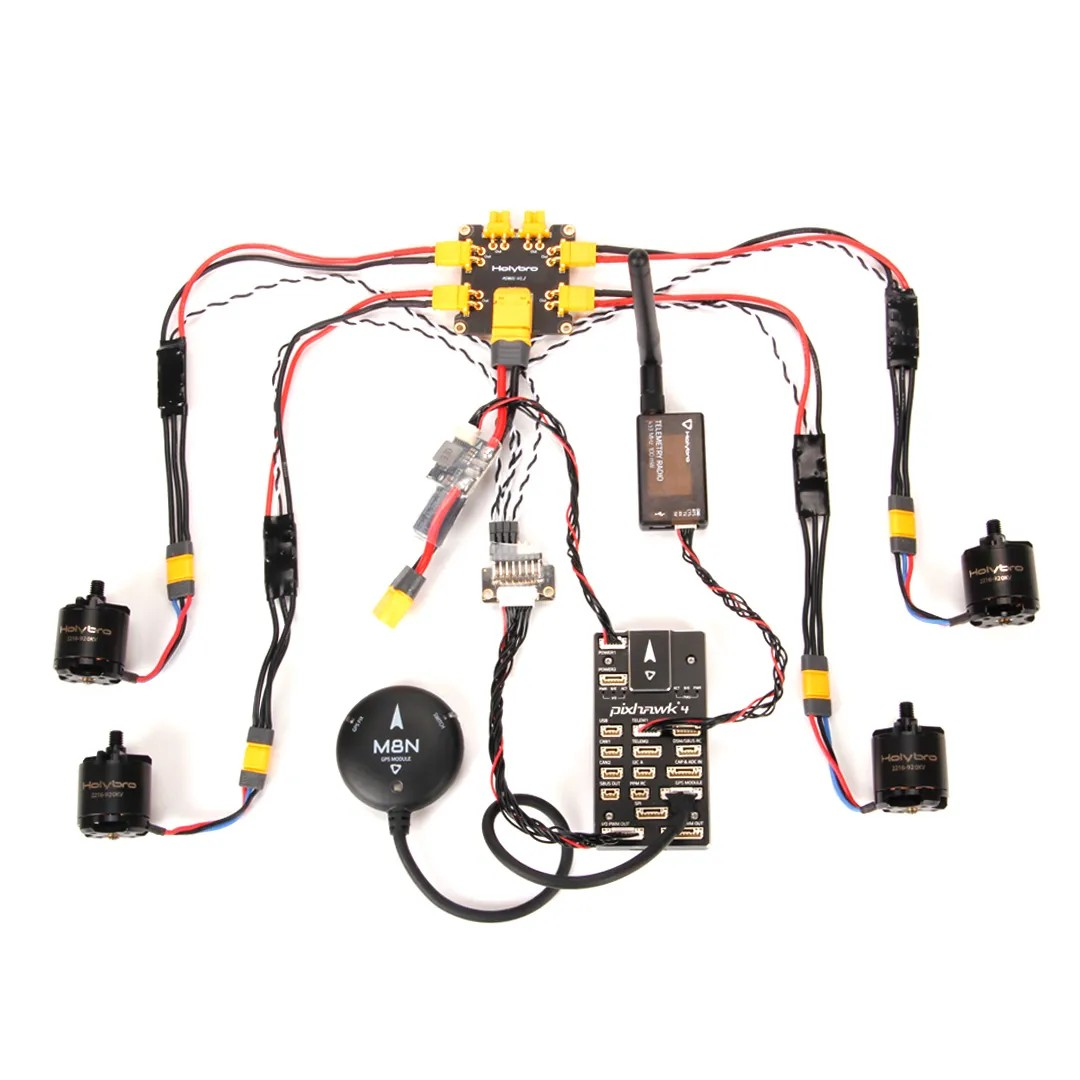

Wiring diagram
- Pre-soldered XT60 for Power Module & Battery
- Rated Current: 60A
- Max Current: 120A (<60 sec)

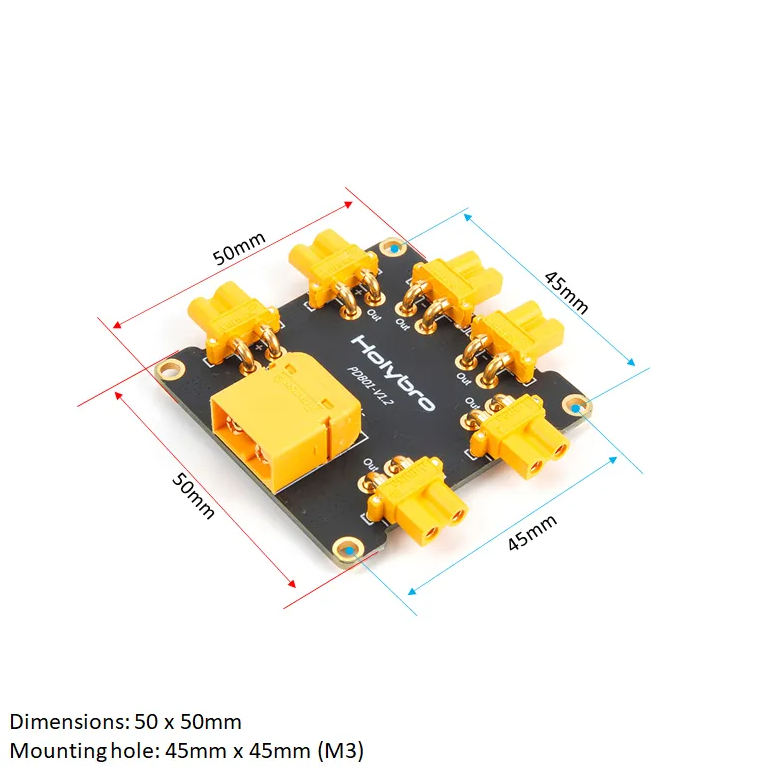

- 45x45mm Mounting Holes
| Item information | Value |
|---|---|
| Manufacturer: |  |
| SKU: | Holy-PDB |
| GTIN: | 4251935116786 |
