Gremsy Pixy WE - Bundle (M300 RTK)

4499,00 €
incl. 19% VAT , plus shipping costs (Höherversicherung 25.000 €)

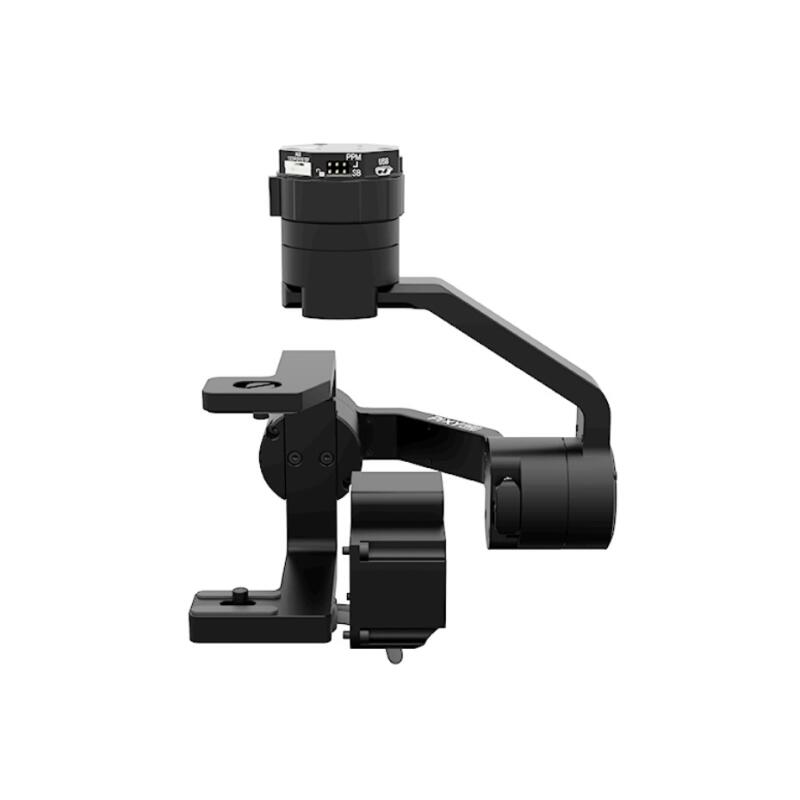

Pixy WE is the gimbal tailored for Workswell Wiris Enterprise, making the flawless combination ready to be used for all unmanned vehicles. The gimbal comes with all advanced built-in function to serve mapping, security and high-resolution imagery applications.

Currently out of stock

Delivery time: 93 Workdays



  • 1 x Pixy WE
  • 1 x Pixy Quick Release
  • 1 x Micro USB Cable
  • 1 x Standard Auxiliary Cable 8-PIN
  • 1 x Sbus Cable
  • 2 x 12V Power Cable (Backup)
  • 1 x Module Bluetooth
  • 1 x Cable For Pixhawk
  • 1 x Pixy UBEC
  • 2 x Camera Screw
  • 3 x Bolt Hexagon Socket M3x6
  • 1 x Bolt Hexagon Socket M3x10
  • 8 x Bolt Hexagon Socket M2.5x5
  • 1 x Allenkey 2.0mm
  • 1 x Allenkey 2.5mm


Manufacturer: Gremsy

Built-In Functions

  •  Operation Modes:

    •         ON/OFF
    •         Lock mode
    •         Follow mode
    •         Mapping mode
  • Temperature Sensor

  • Gremsy Specialized Gimbal Drive Motors with Encoders

  • Micro USB connection

  • Gremsy Advanced 32-Bit high performance ARM microprocessor

  • S-Bus/Spektrum/PPM Receiver Supported

Working Current

    Static current: 400mA (@12V)
    Dynamic current: 800mA (@12V)
    Locked motor current: Max 4.0A (@12V)

Operating Temperature

    0°C ~ 50°C



Gimbal Dimension

    157(D) x 117(W) x 168(H)

Input Power



    Micro USB, CAN, UART (Gimbal MAVLink Protocol), PPM, Sbus, Spektrum, Bluetooth, Micro HDMI

PC Assistant Software Requirements

    Windows XP or above; Mac OS X 10.9 or above

Mobile Assistant Software Requirements

    iOS 7.1 or above; Android 4.3 or above

Maximum Payload

    Wiris Enterprise

Angular Vibration Range

    ± 0.02°

Maximum Controlled Rotation Speed

    Pan axis: 180°/s
    Tilt axis: 180°/s
    Roll axis: 180°/s

Mechanical Endpoint Range

    Pan axis control: +330° to -330°
    Tilt axis control: +135° to -45°
    Roll axis control: +50° to -90°

Controlled Rotation Range

    Pan axis control: +330° to -330°
    Tilt axis control: +135° to -45°
    Roll axis control: ± 45°
