Introduction
This charger is specifically designed for the Mavic 3 intelligent battery and can charge 1-3 batteries simultaneously. It has three working modes: charging mode, storage mode, and discharging mode. It can also display the battery level and use the Mavic 3 battery as a power bank to charge USB devices. This charger has input undervoltage and overvoltage protection, as well as overcurrent protection. When there is input overvoltage, undervoltage, or overcurrent, the charger enters protection mode and stops charging.
Instructions for use
1. The charging mode can provide power to 3 batteries and one USB device (remote Control or mobile phone)
a, Power Adapter power connection

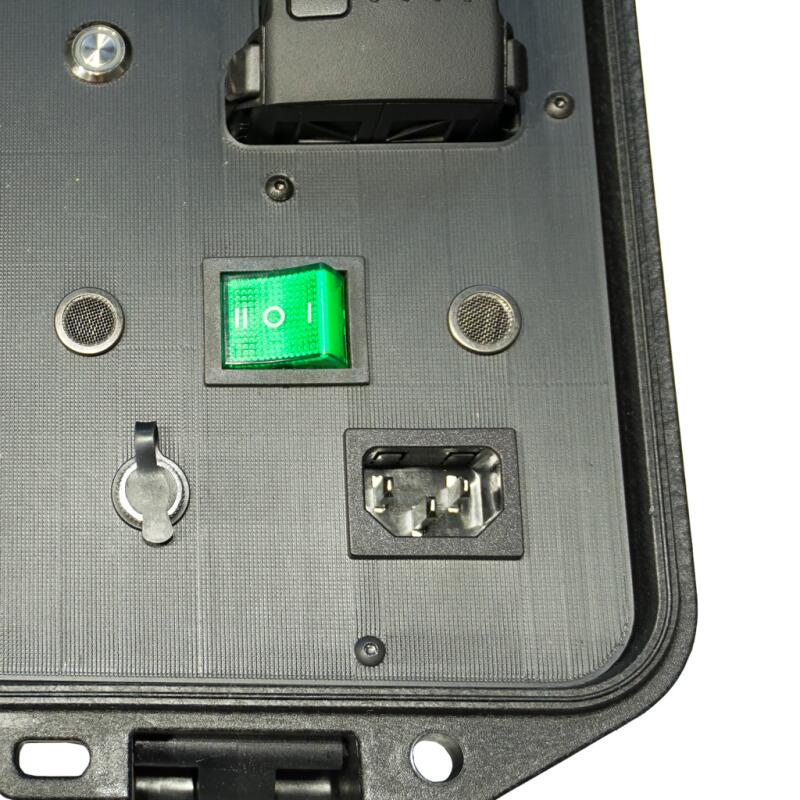

Connect the power Adapter to AC power (110-240V), then connect the charger and power Adapter, and turn on the power switch
b, Connect to the car power supply
2. Instructions for using storage mode:
Firstly, connect the power Adapter and discharger to the charger.
a) After the charger is powered on, press and hold the function button for 2 seconds to switch to strage mode.
b) Manually turn on the battery, and insert the battery into the battery port to start charging or discharging.
c) When the battery Level reaches 60%-65%, charging or discharging will automaticlly stop.

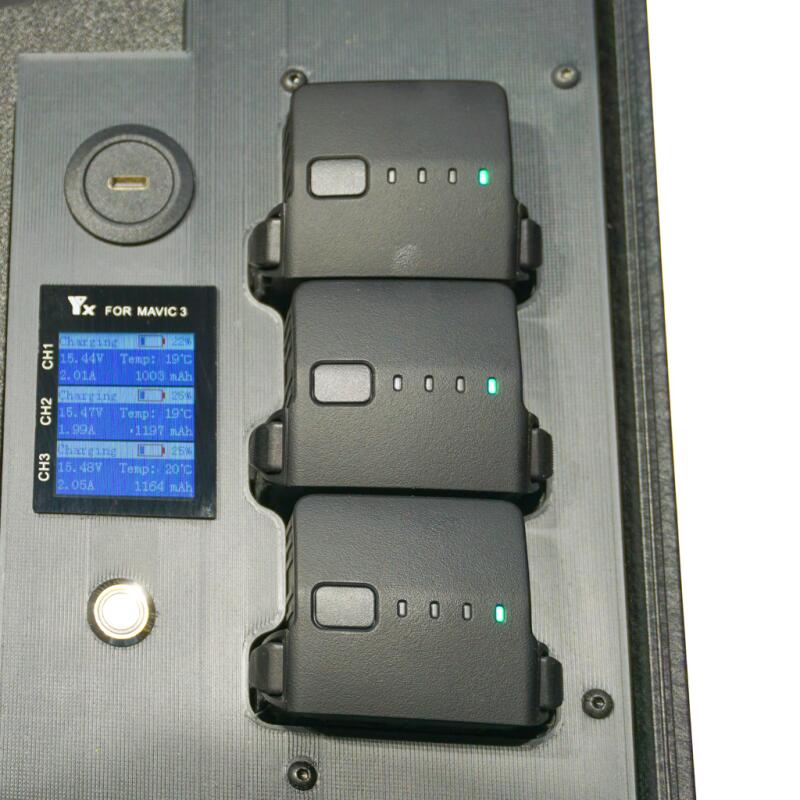

d) d Low batteries are charged in this mode, and the Display screen Shows real-time voltage and current
e) High batteries are discharged in this mode, and the Display screen Shows real-time voltage and current.
f) After storage is complete, the corresponding channel LCD will light up in green and Display "Done".
Tips:
- Please make sure to connect the discharge equipment and turn on the battery for storage mode and discharge mode.
- The battery may not automatically charge if its power level is above 90%.
- The smart battery automatically prohibits charging when the temperature is high within a short time after use. The fourth light of the intelligent battery will flash and sound an alarm.
In this case, please turn on the battery switch, then turn it off to clear the alarm, and Wait until the battery is at constant temperature and then charge the battery again. - After being charged to 99%, the battery will receive a small current charge for balancing and maintenance. The duration of this process may vary depending on the degree of battery wear, and some batteries may take longer. If you need to use the battery urgently, you can use it directly.
- When using the car power supply, it is necessary to charge it when the vehicle engine is started.
Specifications
| Input voltage: | 11-14/10A(Max) |
| Charging current: | 17.66V/2.0A*3 or 17.6V/3.0A*2 |
| USB Output: | 5V/3A |
| Output total power: | 120W (Max) |
| Operating Temperature | 32 to 140 F |
| Manufacturer: |  |
| SKU: | DRONE03 |
| GTIN: | 4251935117219 |
