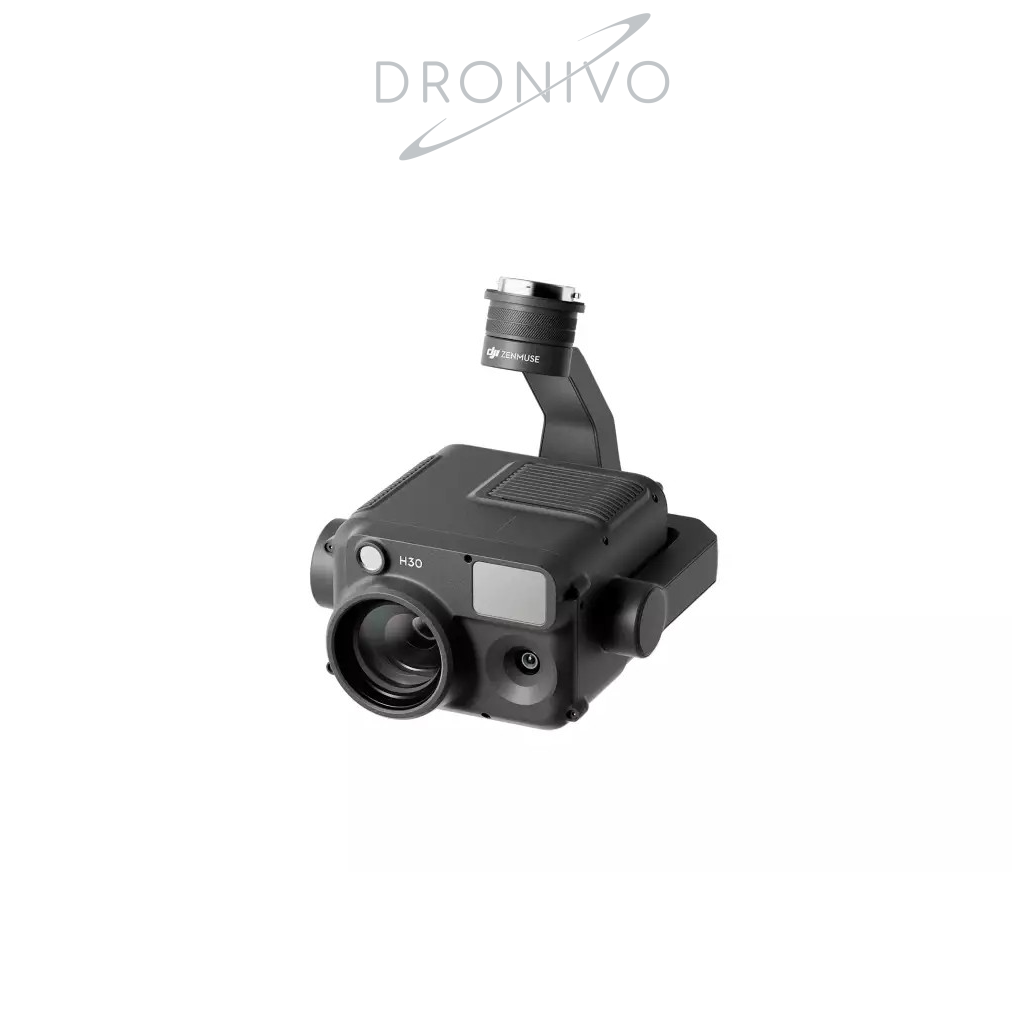

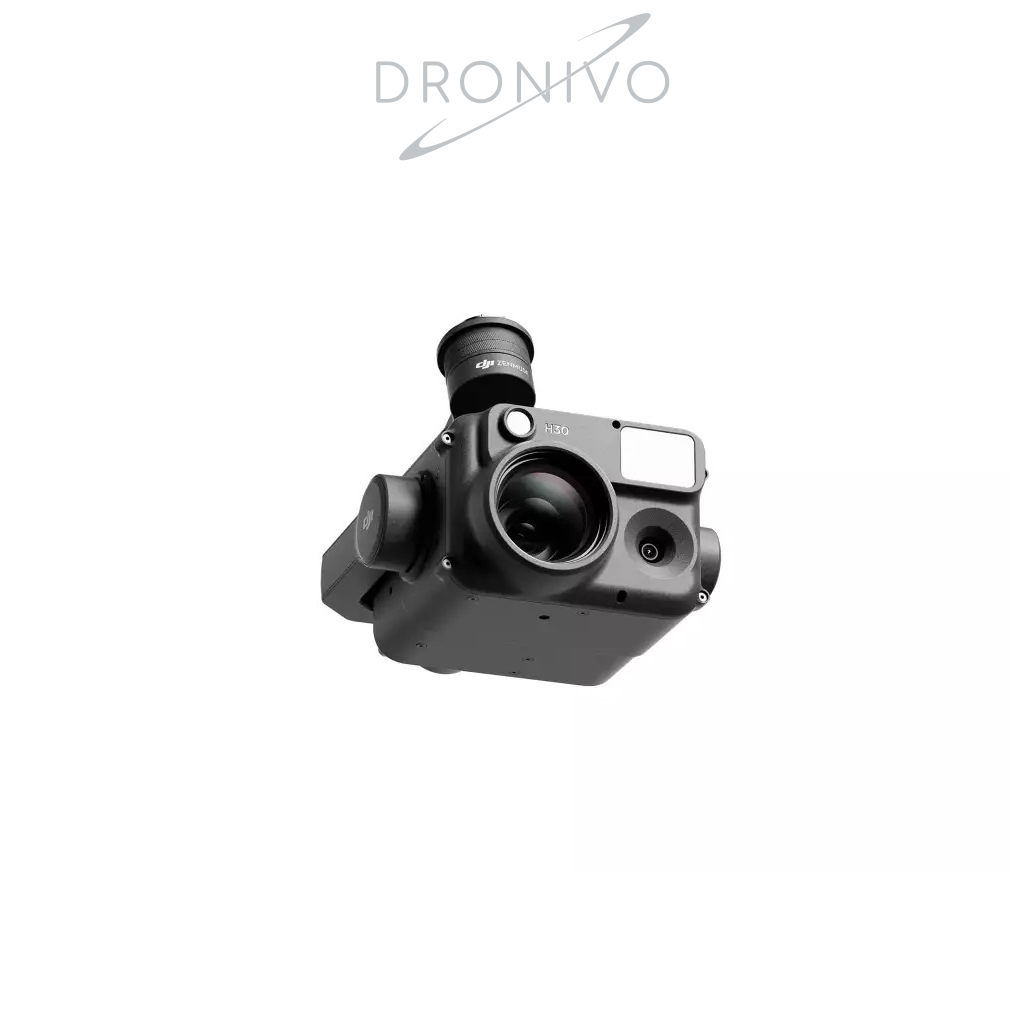

DJI Zenmuse H30T
The Zenmuse H30, the flagship weatherproof multi-light payload, integrates four modules:
- Wide-angle camera (48 megapixels)
- Zoom camera (40 megapixels)
- Laser rangefinder (3 to 3000 meters)
- Near-infrared auxiliary light (850 nanometer wavelength)
It also applies cutting-edge intelligent algorithms to significantly improve the daytime visible light observation capability (up to 34x optical zoom and 400x digital zoom), and night vision capability (full-color night vision, black-and-white night vision, and auxiliary light function in dark environments).

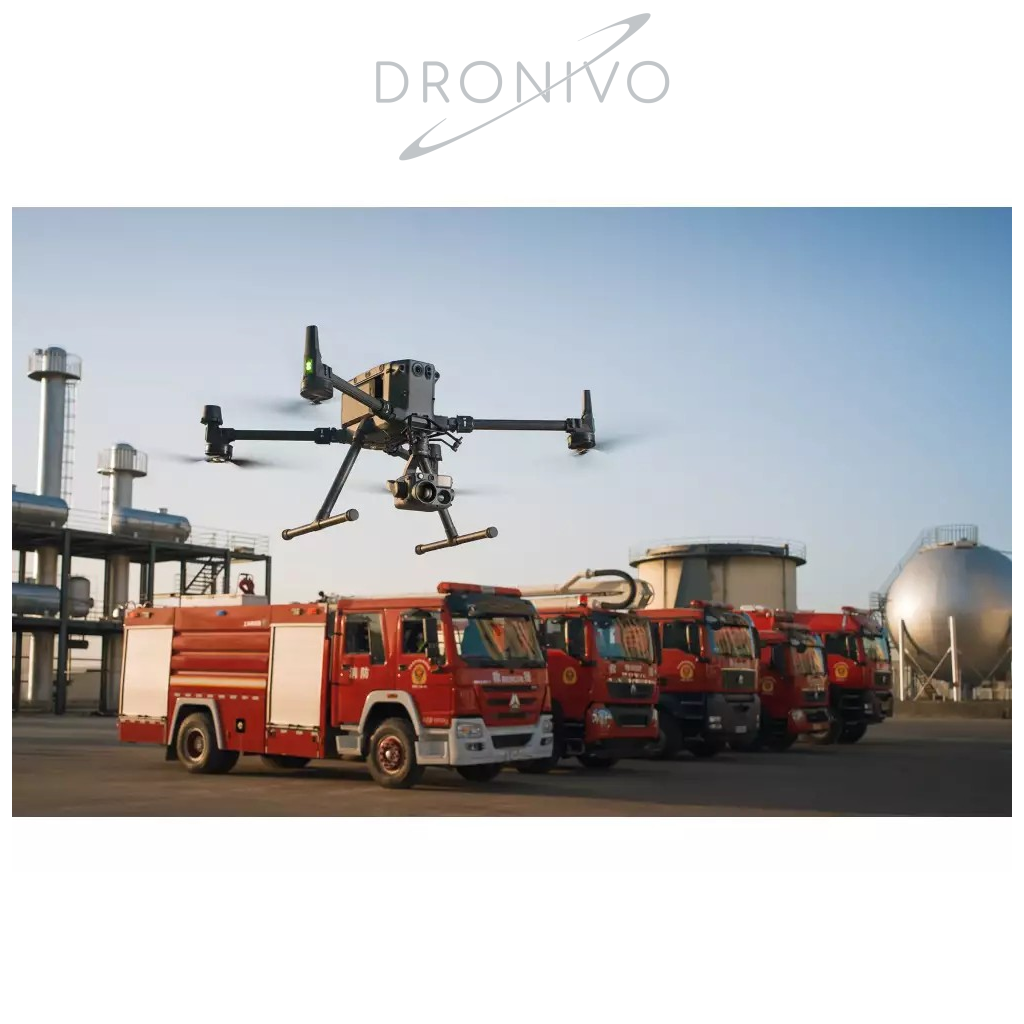

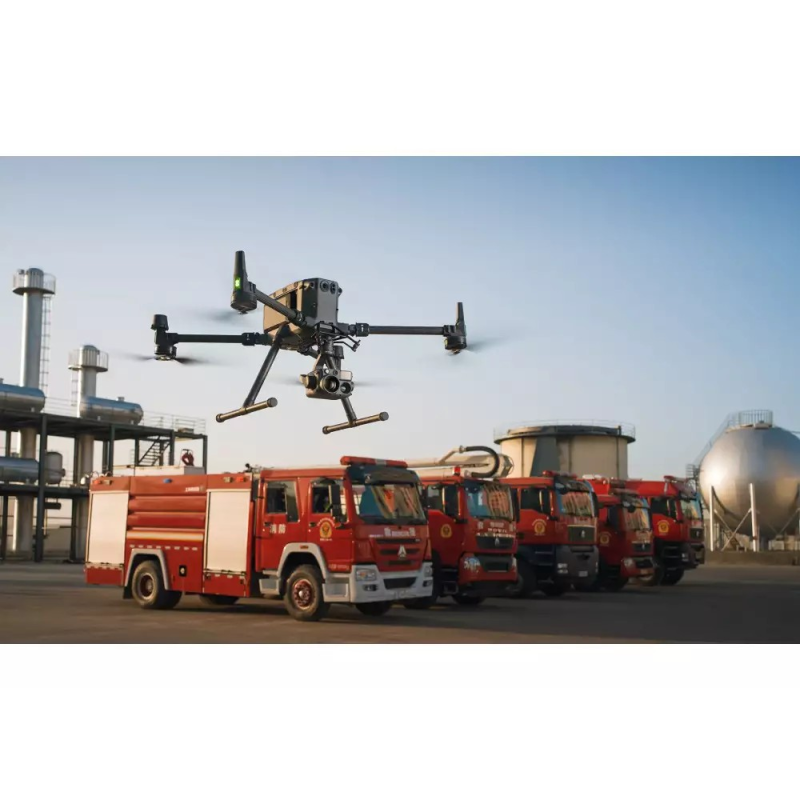

The performance in all aspects is at the industry-leading level. The device can be equipped with M350 RTK/M300 RTK, and can easily handle operations in the fields of public safety, fire rescue, power inspection, oil and gas inspection, traffic law enforcement, equipment inspection, agricultural and forestry fire prevention, and wildlife protection.
Superior Zoom
- 34x optical zoom
- 400x digital zoom
- EIS ensures stable images at long focal lengths
- 3000m (~9842ft) LRF
Optimized Night Vision
- Full color night vision
- Noise reduction
- Black and white night vision -Remove IR cut filter
- NIR auxiliary light as active illumination
Smart Functions
- Smart Capture for better imaging
- Electronic defogging for higher clarity
- Video foreground stabilization to improve inspection efficiency
Data Management
- Video pre-recording
- Media encryption and log deletion
- FH2 compatibility
Adaptability
- IP54 IP protection class
- 20℃ ~ 50℃ Operating range
General
Product Name
Zenmuse H30 Series
Dimensions
170×145×165 mm (L×W×H)
Weight
920±5 g
Power
H30: 26 W
H30T: 28 W
Ingress Protection Rating
IP54
Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
Supported Aircraft
Matrice 300 RTK (requires DJI RC Plus)
Matrice 350 RTK
Environment
Operating Temperature
-20° to 50° C (-4° to 122° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)

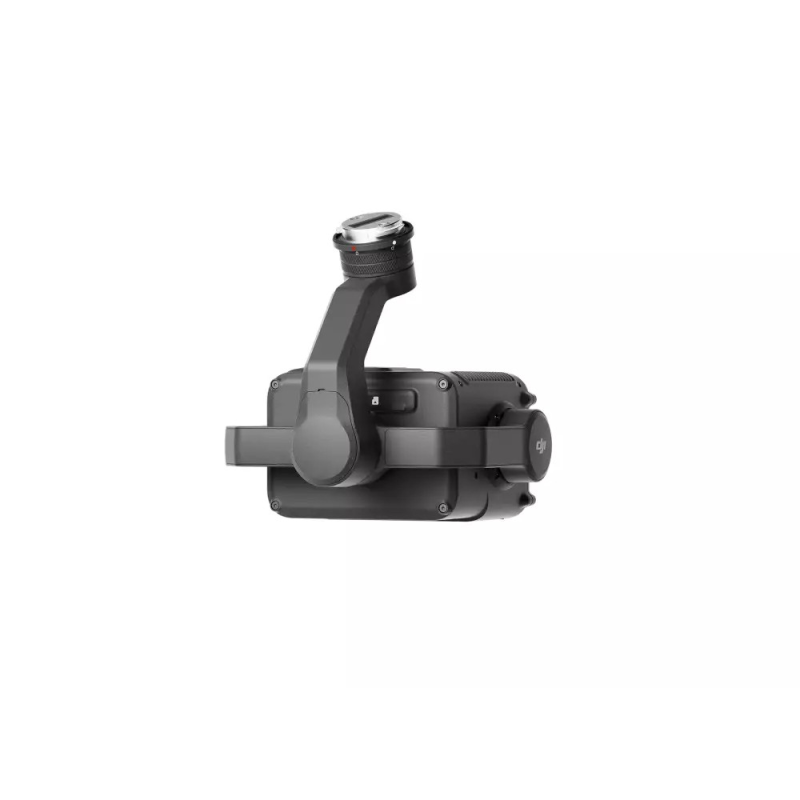

Gimbal
Stabilization System
3-axis (tilt, roll, pan)
Angular Vibration Range
Hover: ±0.002°
Flight: ±0.004°
Mounting
Detachable DJI SKYPORT
Mechanical Range
Tilt: -132.5° to +73°
Roll: ±60°
Pan: ±328°
(Structural limit, not controllable range)
Controllable Range
Tilt: -120° to +60°
Pan: ±320°
Operation Mode
Follow/Free/Re-center
Zoom Camera
Sensor
1/1.8-inch CMOS, Effective Pixels: 40 MP
Lens
Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
Aperture: f/1.6-f/5.2
DFOV: 66.7°-2.9°
Focus Mode
MF, AFC, AFS
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
1/8000-2 s
ISO Range
Single Shot: 100-25600
Night Scene: 100-819200
Video Resolution
Single Shot: 3840×2160@30fps 1920×1080@30fps
Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@fps
Video Format
MP4
Video Subtitles
Supported
Video Codec and Bit Rate Strategy
H.264, H.265
CBR, VBR
Max Photo Size
7328×5496, 3664×2748
Photo Format
JPG
Wide-Angle Camera
Sensor
1/1.3-inch CMOS, Effective Pixels: 48 MP
Lens
Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
Aperture: f/1.7
DFOV: 82.1°
Focus Mode
MF, AFC, AFS
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
1/8000-2 s
ISO Range
Single Shot: 100-25600
Night Scene: 100-409600
Video Resolution
Single Shot: 3840×2160@30fps, 1920×1080@30fps
Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
Video Format
MP4
Video Subtitles
Supported
Video Codec and Bit Rate Strategy
H.264, H.265
CBR, VBR
Max Photo Size
8064×6048, 4032×3024
Photo Format
JPG
Infrared Thermal Camera (H30T)
Thermal Imager
Uncooled VOx Microbolometer
Lens
Focal Length: 24 mm (equivalent focal length: 52 mm)
Aperture: f/0.95
DFOV: 45.2°
Digital Zoom Equivalent
32×
Video Resolution
1280×1024@30fps
Video Format
MP4
Video Subtitles
Supported
Video Codec and Bit Rate Strategy
H264, H265
CBR, VBR
Photo Resolution
1280×1024
Photo Format
R-JPEG
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Noise Equivalent Temperature Difference (NETD)
≤ 50 mk@f/1.0
Temperature Measurement Method
Spot Measurement, Area Measurement, Center Point Temperature Measurement
Temperature Measurement Range
High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
Temperature Alert
Supported
Sun Burn Protection
Supported
FFC
Auto, Manual
Palette
White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron
Laser Range Finder
Wavelength
905 nm
Measurement Range
3-3000 m
Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m*
The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance. * Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
Measurement Accuracy
≤ 500 m: ±(0.2 m+measurement distance×0.15%)
> 500 m: ±1.0 m
Laser Spot Size
@100 m: approx. 50×450 mm
@1000 m: approx. 450×4500 mm
Safety Regulation Level
Class 1
Accessible Emission Limit (AEL)
260 nJ
Reference Aperture
18 mm
Max Laser Pulse Emission Power Within 5 Nanoseconds
52 W
NIR Auxiliary Light
Wavelength
850 nm
FOV
4.6±0.6° (Round)
Safety Regulation Level
Class 1
Illumination Range
@100 m: Approx. 8m diameter circle
Special Features
Hybrid Optical Zoom
34×
Max Zoom
400×
Link Zoom
Supported
Click to Aim
Supported
High-Res Grid Photo
Supported
Night Scene
Supported
Timestamp
Supported
Smart Capture
Supported
Video Pre-Recording
Supported
UHR Infrared Image
Supported
Data Storage
Supported microSD Cards
U3/Class10/V30 or above is required, or use a memory card from the recommended list.
Supported File System
exFAT
Recommended microSD Cards
SanDisk Extreme Pro V30 A1 32GB microSDHC
Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
Zenmuse H30T supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
Post-Processing Software
Mapping Software
DJI Terra, DJI FlightHub 2
Infrared Analysis Software
DJI Thermal Analysis Tool 3
