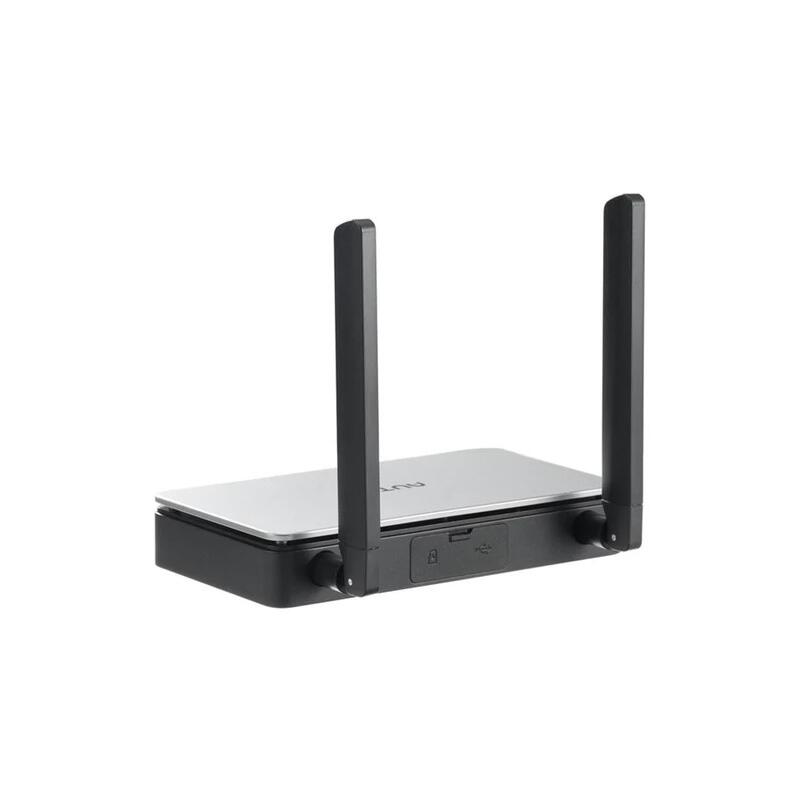

Autel EVO II - Live Deck 2 (V3 Series)

699,00 €

incl. 19% VAT , plus (Höherversicherung 2.500 €)

Fits for

EVO II V3-Series

Highlights

1080P/60FPS video stream
Three auto-switch bands
7.5 mile transmission range
5 hours battery life
IP 43 ruggedness
Operating frequencies | 2.4 GHz/5.8 GHz/900 MHz

Broadcast with Live Deck 2

Transmit real-time HD video to a wide-variety of devices, allowing cross-departmental teams enhanced situational awareness and communication which can lead to quicker and better decision making.(Support all EVO II V3 drones.)

Multi-Band Strong Transmission

Based on the SkyLink 2.0 image transmission system, Live Deck 2 can communicate with aircraft via 2.4GHz/5.8GHz/900MHz working frequencies. Adopted with a three-in-one antenna, the performance of the transmission, anti-EMI, low latency have improved greatly.

Stream Anywhere

The Live Deck 2 supports multiple video output options, including HDMI, Wi-Fi *, and Ethernet, enabling users to view clear visuals to the device of their choosing.

5-Hour Battery Life

Powered by a 6200mAh lithium battery, Live Deck 2 can run for up to 5 hours on a single charge. Once depleted, juice up anywhere using the micro USB port or a portable battery pack.

Included

Live Deck 2
Pair of SMA Threaded Antennas

Manufacturer:
SKU:	AE2LD2305
GTIN:	6924991103189

Weight

424.5g

Dimensions

152*111*23.2mm (antennas folded) 223.9*152*23.3mm (antennas unfolded)

Ingress Protection

IP43

Operating Frequency

902-928MHz（FCC） 2.400-2.4835GHz 5.725-5.850GHz（Non-Japan） 5.650-5.755GHz（Japan Only）

Transmitter Power

(EIRP) 900MHz: FCC《33dBm 2.4GHz: FCC/NCC《=33dBm; CE/MIC/SRRC/KC《=20dBm 5.8GHz/5.7GHz: FCC/SRRC/NCC《=33dBm; KC

《=20dBm; CE《=14dBm

Max Transmission Distance (unobstructed, free of interference)

12km

Operating time

Operating Current/Voltage

1.3A/3.85V (not connected to smartphone)

Battery Type

Li-Po

Battery Capacity

6200mAh

Rated Power

Operating Temperature

14°F~104°F (-10°C~40°C)

Operating Humidity

95%RH

HDMI

1080p 60 fps

Ethernet

100M

Supported Aircrafts

EVO II Pro V3 EVO II Dual 640T V3 EVO II RTK Series V3 EVO II Enterprise V3
