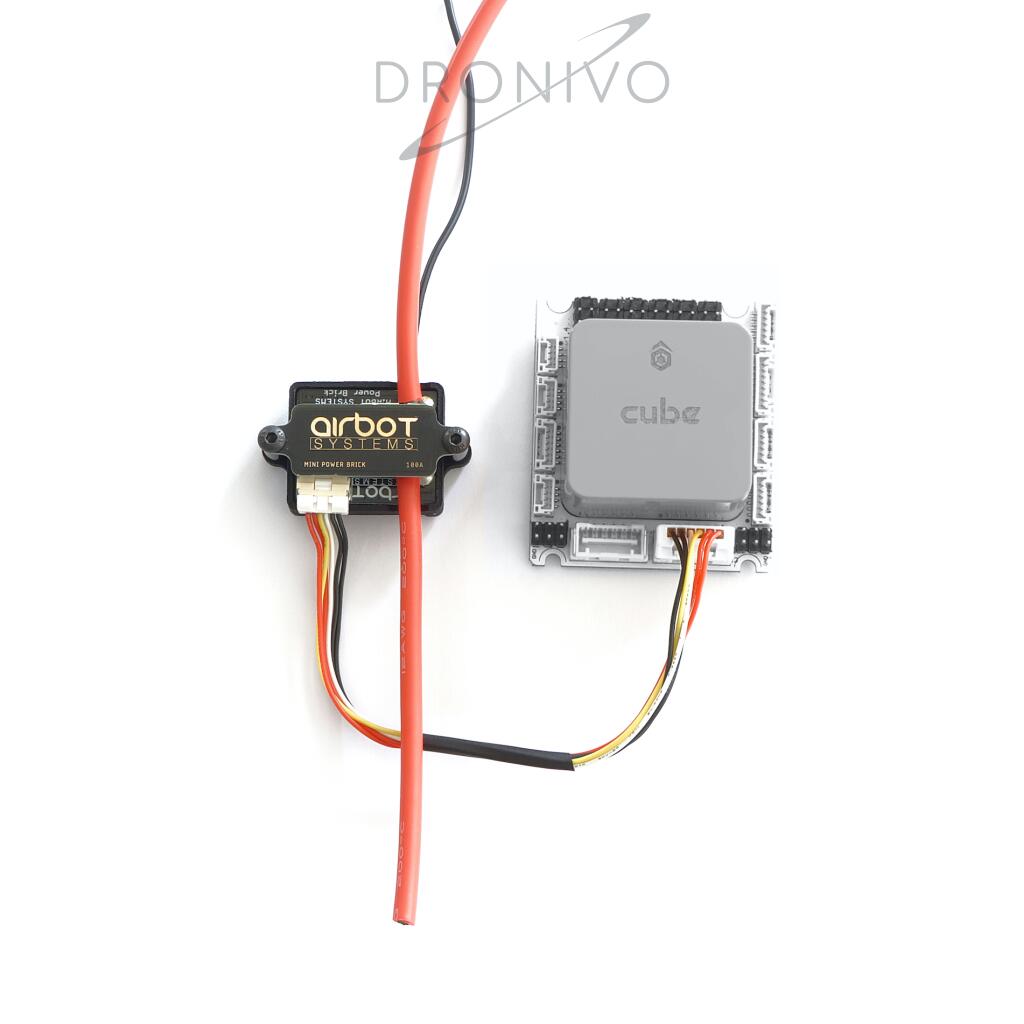

The Mini power bricks integrates built in voltage and current sensing. The mini power supply features integrated voltage and current measurement. The voltage and current information are used to determine the consumed power and estimate the remaining battery capacity.
Technical specifications:
- Dimensions: 44 * 27 * 17.6 mm
- Mounting hole diameter: M3
- Mounting hole spacing: 38mm
- Weight: 31g
- Maximum input voltage: 12S
- Maximum current output: 3A
- Maximum peak current: 4A
- Voltage probe: Up to 12S
- Maximum current measurement: 100A
