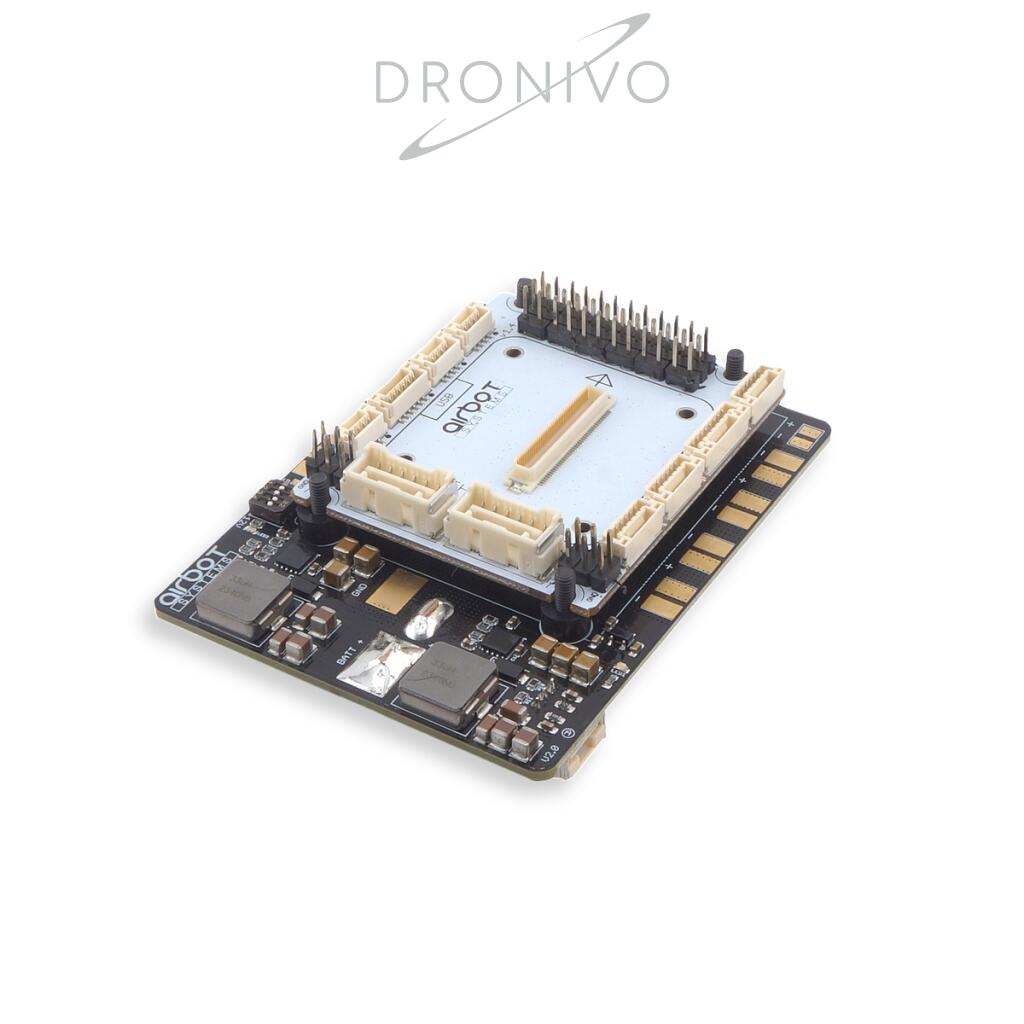

Mini Carrier Board PRO
The Mini Carrier Board PRO is the most compact high-end solution on the market. It ensures the distribution of all signals and power.
The Pro version integrates a power distribution board which includes two voltage converters, a current sensor, and a voltage probe. This very compact set includes all the elements necessary to accommodate a Cube, allows easy assembly, and saves significant space.

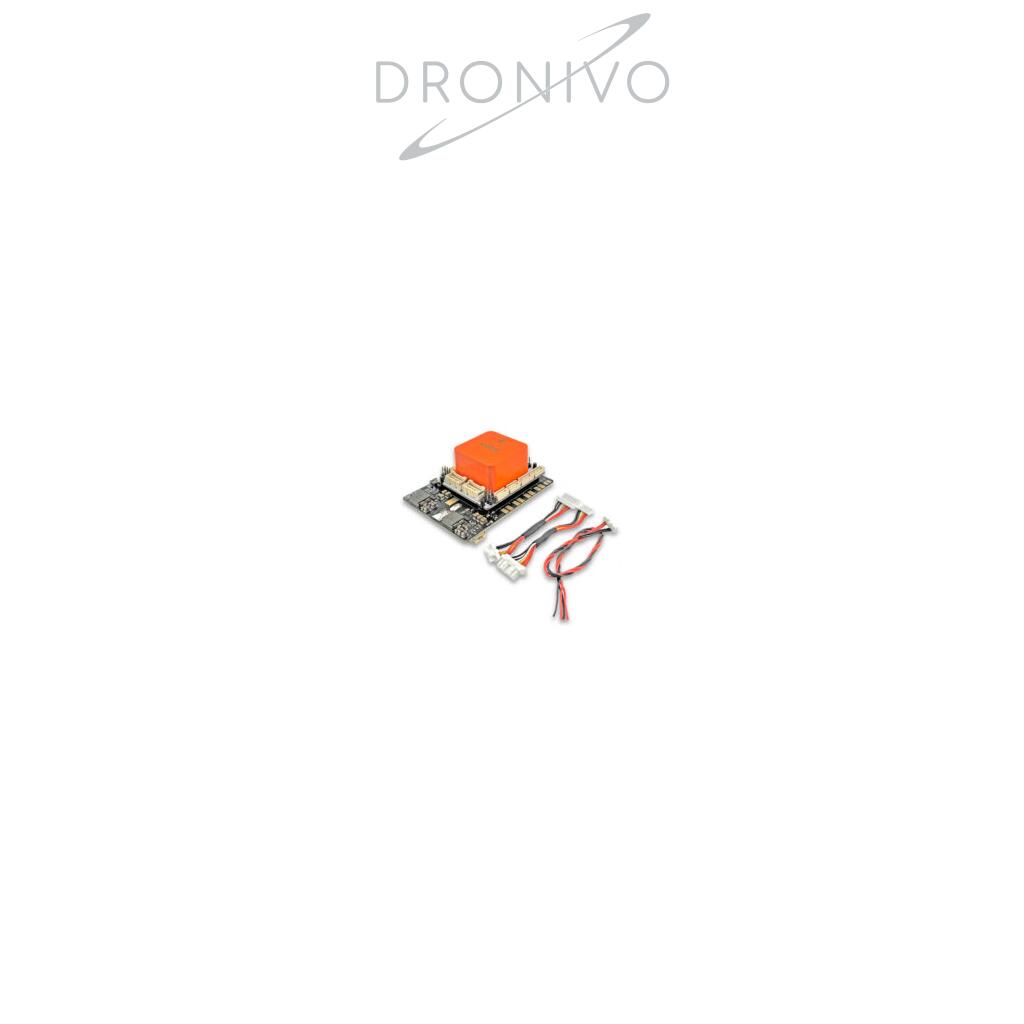

The Airbot Mini Carrier Board PRO has been specially designed to facilitate the installation of a Cube Autopilot on any drone. It offers the same connectivity as the official Cubepilot carrier board and guarantees perfect compatibility with the Pixhawk Cube ecosystem.
Technical Specifications
Mini carrier board: (Version 1.4)
Dimensions: 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)
Mini Distribution Board Pro:
Dimensions: 65.5*85mm (2.58*3.35 inch)
Weight: 44gr (0.097lb)
Max current: 100A / 200A
Power supply 1:
Output voltage: 5.3V
Max output current: 3A (4A peak tolerant)
Max voltage input: 50.4V (12S)
Power supply 2:

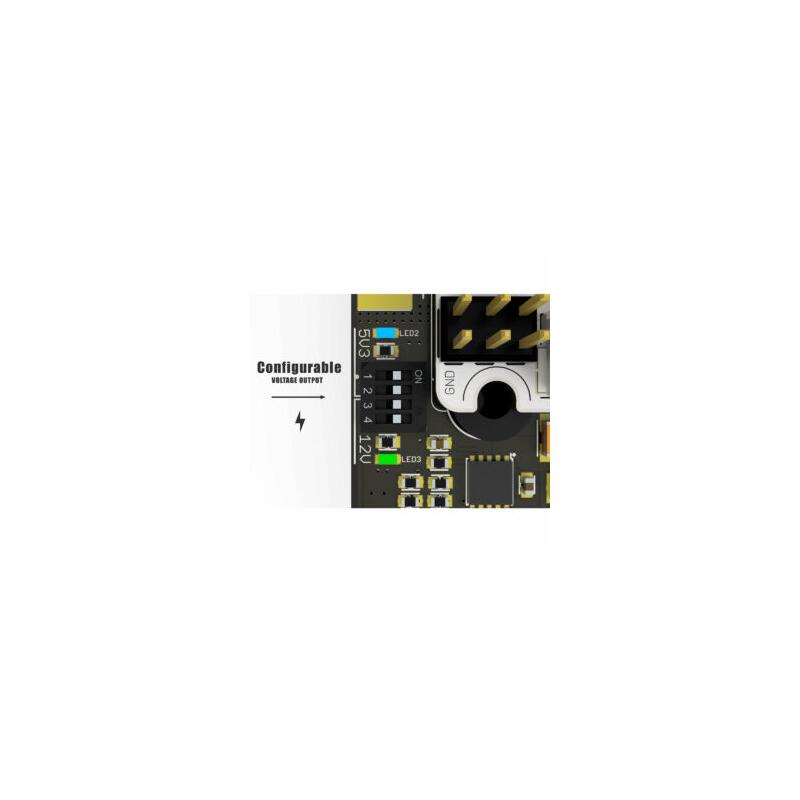

Output voltage: 5.3V or 12V
Max output current: 3A (4A peak tolerant)
Max voltage input: 50.4V (12S)
TOTAL weight: 68g / 0.150lbs (inclus entretoises & cables)
| Manufacturer: |  |
| SKU: | AB006 |
Mini Carrier Board (Version 1.4)
Dimensions: 50.5 x 57.5 mm (1.98 x 2.26 inch)
Height with Cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19g (0.041 lb) (including connectors and PSM)
Mini Distribution Board Pro
Dimensions: 65.5 x 85 mm (2.58 x 3.35 inch)
Weight: 44g (0.097lb)
Max Current: 100A / 200A
Power Supply 1
Output Voltage: 5.3V
Max Output Current: 3A (4A peak tolerant)
Max Voltage Input: 50.4V (12S)
Power Supply 2
Output Voltage: 5.3V or 12V
Max Output Current: 3A (4A peak tolerant)
Max Voltage Input: 50.4V (12S)
Total Weight: 68g / 0.150lbs (including spacers & cables)

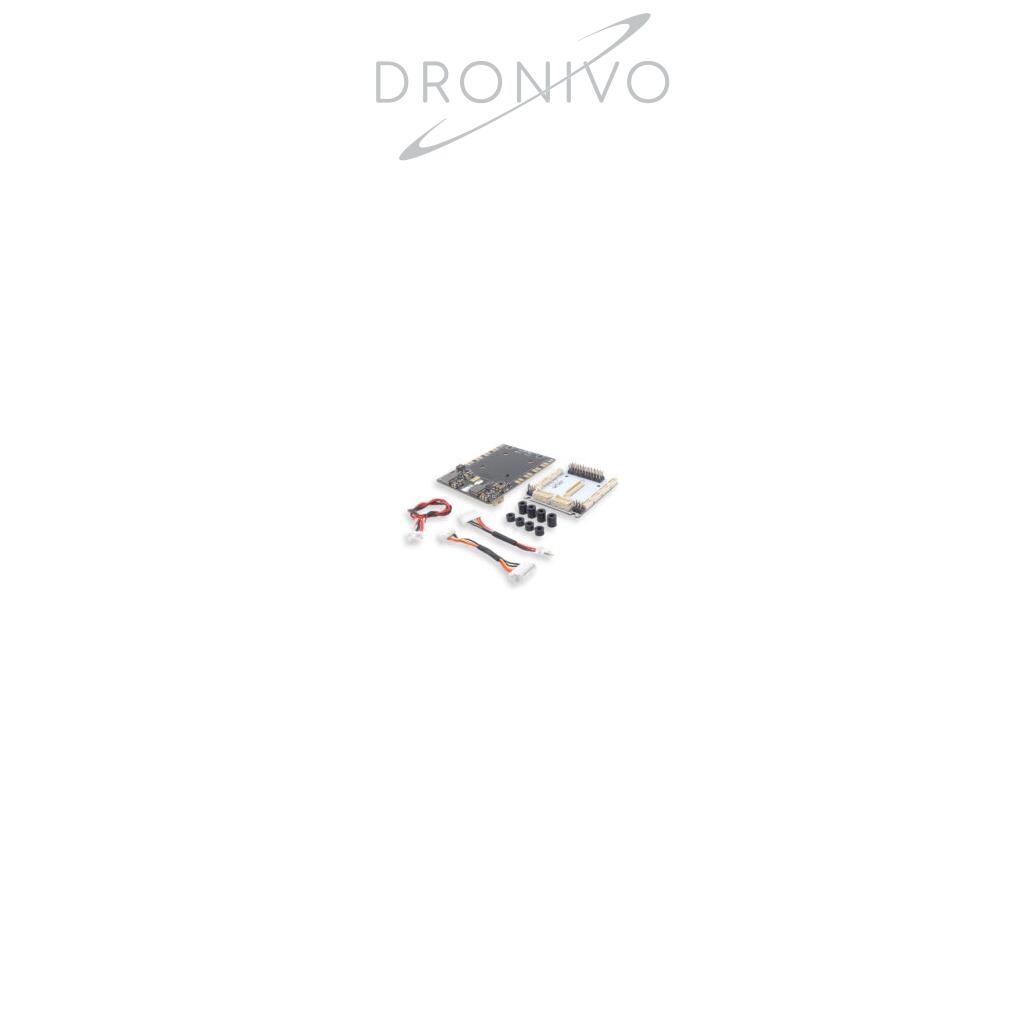

Komplettes Set
1 * Mini-Trägerplatine
1 * Mini PDB Pro v2
4 * M3x8mm Nylon-Abstandshalter
4 * M3x4mm Nylon-Abstandshalter
2 * Würfel-Stromkabel
1 * Zubehör Stromkabel
