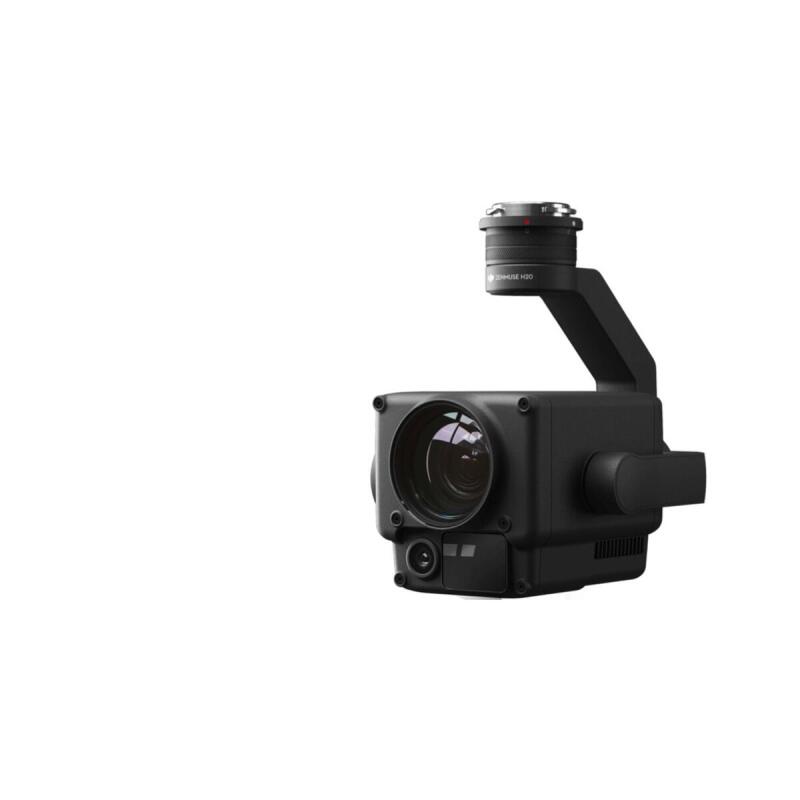

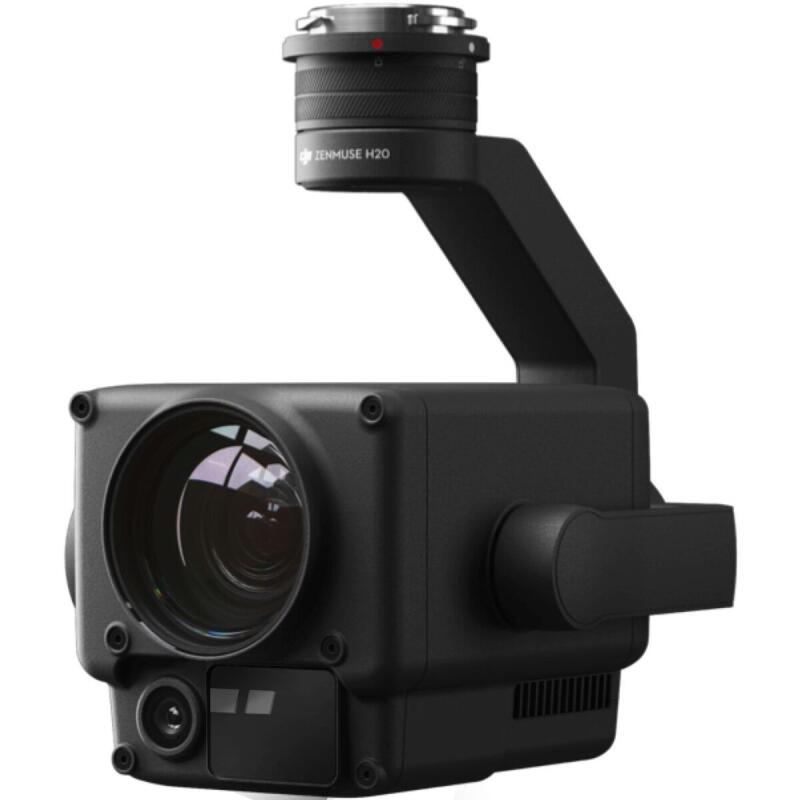

DJI Zenmuse H20

Price on application

Compatible with DJI M300

Bestellung auf Kundenwunsch

DJI Zenmuse H20

"H" for hybrid

multi-sensor payloads that give a whole new meaning to mission efficiency. With unparalleled intelligence and integrated design, unprecedented aerial imaging capabilities are available for a range of commercial UAV applications.

.

  • 12 Megapixel wide angle camera
  • 20 Megapixel zoom camera
  • Radiometric thermal imaging camera
  • Laser range finder
  • Protection class IP44
  • Operating temperature -20 C to 50 C
  • Active and electronic image stabilization
  • Night scene mode

All required sensors in one device

Record everything. From close up or from a distance. In real vivid colors or as a thermal image. An integrated laser rangefinder (LRF) measures the distance to an object at a distance of up to 1,200 m. A powerful, integrated payload that unleashes advanced intelligence features for DJI's industrial drone platforms.

H20 - triple sensor solution

  • 20 MP zoom camera
  • 12 MP wide angle camera
  • 1.200 m laser range finder

H20T - quadruple sensor solution

  • 20 MP zoom camera
  • 12 MP wide angle camera
  • 1.200 m laser range finder
  • Radiometric thermal imaging camera (640 512 pixels)

Boundlessly precise far vision
Powerful zoom camera

  • 23x hybrid optical zoom, 200x Max. zoom
  • 20 Megapixel 1/1.7" CMOS sensor
  • Video resolution: 4K at 30fps

All in view

>ul>>li>wide angle camera>/li>>li> 35 mm equivalent focal length: 24 mm 82.9

  • 12 Megapixel 1/2.3" CMOS sensor
  • Precise distance data

    • Laser rangefinder
    • Range: 3 m - 1,200 m
    • Accuracy: (0.2 m + D 0.15%)

    Discover the invisible

    • Radiometric thermal imaging camera
    • DFOV: 40.6
    • Resolution: 640 512 pixels, frame rate: 30 fps
    • Thermal sensitivity: = 50 mk at f/1.0 (NEDT)

    Scope of delivery:

    • 1x DJI Zenmuse H20T
    • 1x Enterprise Shield Basic Service Package (Paper Supplement)
    • 1x Hardcase
    • 1x covers for lens
    • 1x cover for gimbal connection
    Manufacturer:
    Item number: 380
