Brushless Electric Motors from the Market Leader of Propulsion Systems for Drones/UAVs
T-Motor offers Electric Motors of the highest Quality and Industrial Grade.
First Class Efficiency and Reliability are the Result of excellent Processing and Components. Manufacturers of UAVs for industrial operations can hardly do without the brand T-Motor.

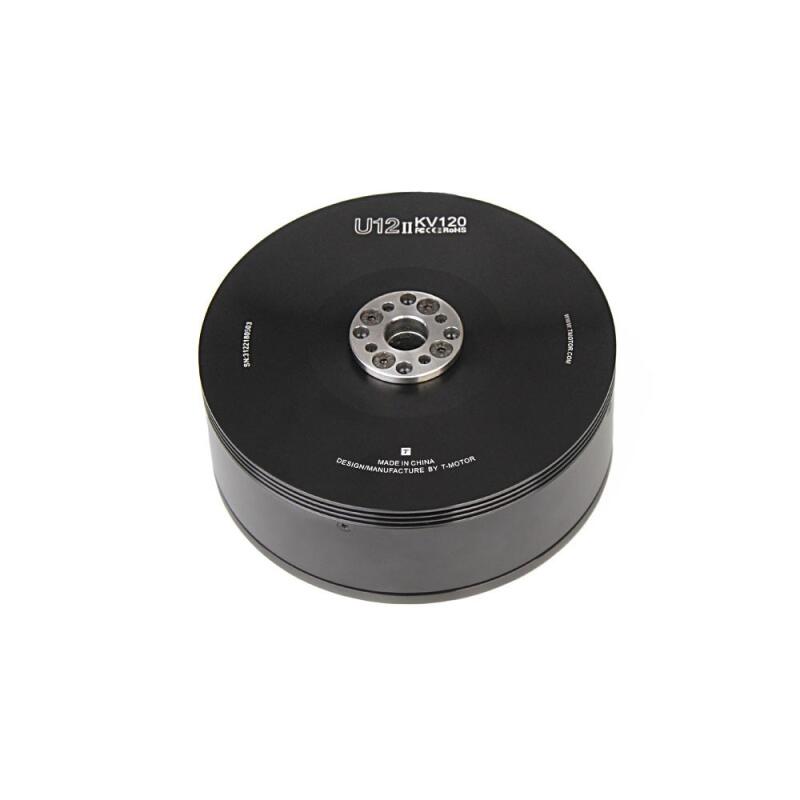

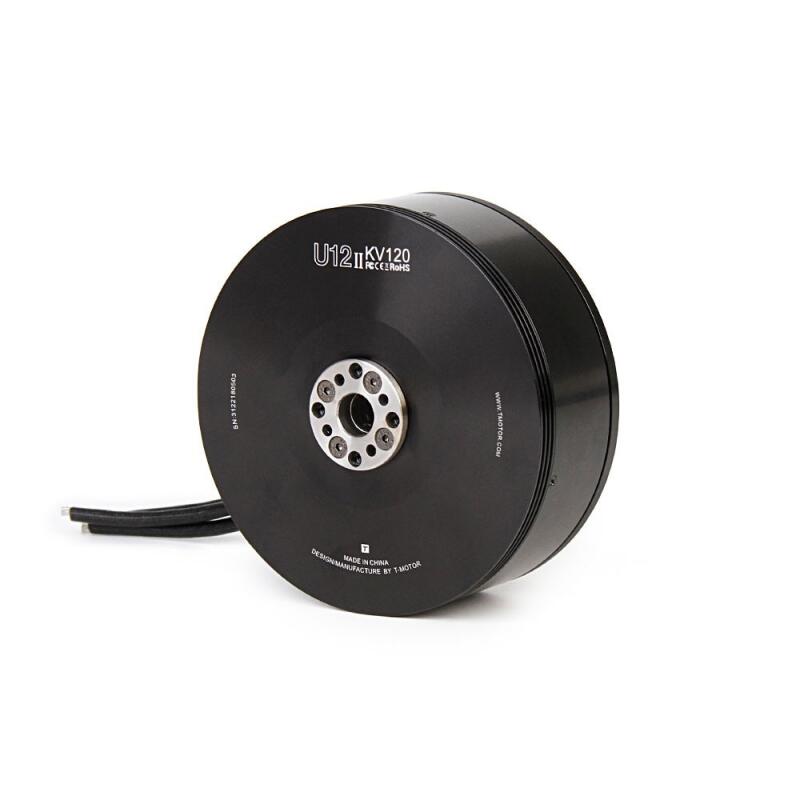

U12II - A leap of thrust improvement
- Redesigned iron core
- Sine wave features
- FOC ESC
- Silver winding
- Innovative cooling design
Imported Custom Silver Wires
Silver wires are adopted for easy control over aircraft from fast motor response speed, reliability and copper loss reduction which also helps lower motor heat by 30%.
New Iron Core Design
The new iron core is selected after months of testing, comparison and improvement. The new design helps provide more thrust and better efficiency while maintain the best weight value.
Max. Thrust: 20.4kg - Heavy Load
With new iron core design, max. thrust of new U12 reaches 20.4kg from 13.6kg which greatly elevates the aircraft payload.
Motor Works at Ease in High Temperature
Centrifugal air-cooling system, built-in array for efficient heat dissipation. The terrific cooling performance guarantees the reliability during even running in 50°C environment
- Efficient cooling
Motor Protection - For safe flight
IP55: Heavy rains and desert are not qualified to stop you from flying
New Dust Prevention Network
Protect motors from sand, dust, foreign matters and magnetic particles.
Iron Core
Special anti-rust treatment: Passing 48h salt spray test
- Special anti-rust treatment
- Salt Spray Test
Motor Service Life
1500 flights are out of question (40mins/flight)
Imported Custom Bearings
Simulated analyses are carried out based on the stress under operating condition in axial and radial directions.
Redesign of custom bearing contribute to prolong the bearing life to 1000h under trouble-free operation.
N42 UH Arc Magnet
High grade magnets improve torque for high efficiency in high temperature.
| Manufacturer: |  |
| SKU: | TMOM0100 |
| GTIN: | 4251935114973 |
| Content: | 1,00 Pieces |
Specifications
- Test Item: KV120
- Motor Dimensions: Ø106.8 x 47.6mm
- Lead: Enameled Wire 90mm
- Shaft Diameter: 15mm
- Idle Current (24V): 1.5A
- Max. Power: 4560W
- Weight (incl. Cable): 778g
- Internal Resistance: 22mΩ
- Configuration: 36N42P
- Rated Voltage (Lipo): 10-14S
- Peak Current (180s): 95A
Test Report
| Typ | Voltage (V) | Propeller | Throttle | Thrust (g) | Torque (N*m) | Current (A) | RPM | Power (W) | Efficiency (g/W) | Operating Temperature (°C) |
|
U12II KV120 |
48 |
T-MOTOR G30 x 10.5" |
50% | 5500 | 1.9 | 14.5 | 2548 | 696 | 7.9 |
96°C (Ambient temperature: 24°C) |
| 55% | 7400 | 2.7 | 22.5 | 2971 | 1080 | 6.85 | ||||
| 60% | 8800 | 3.2 | 28.3 | 3202 | 1358.4 | 6.48 | ||||
| 65% | 10200 | 3.8 | 34.6 | 3430 | 1660.8 | 6.14 | ||||
| 75% | 13300 | 5 | 49.2 | 3882 | 2361.6 | 5.63 | ||||
| 85% | 16300 | 6.2 | 66.4 | 4256 | 3187.2 | 5.11 | ||||
| 100% | 20400 | 7.9 | 94.3 | 4742 | 4526.4 | 4.51 |
Note: Motor temperature is motor surface temperature @100% throttle running 5 mins.
(Data above based on benchtest are for reference only, comparison with that of other motor types is not recommended.)
