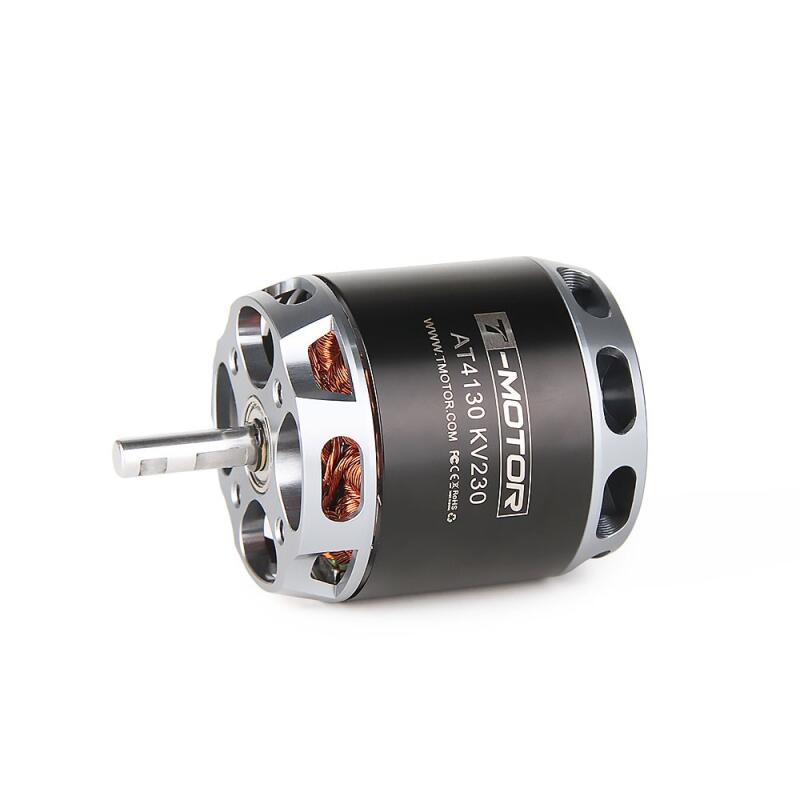

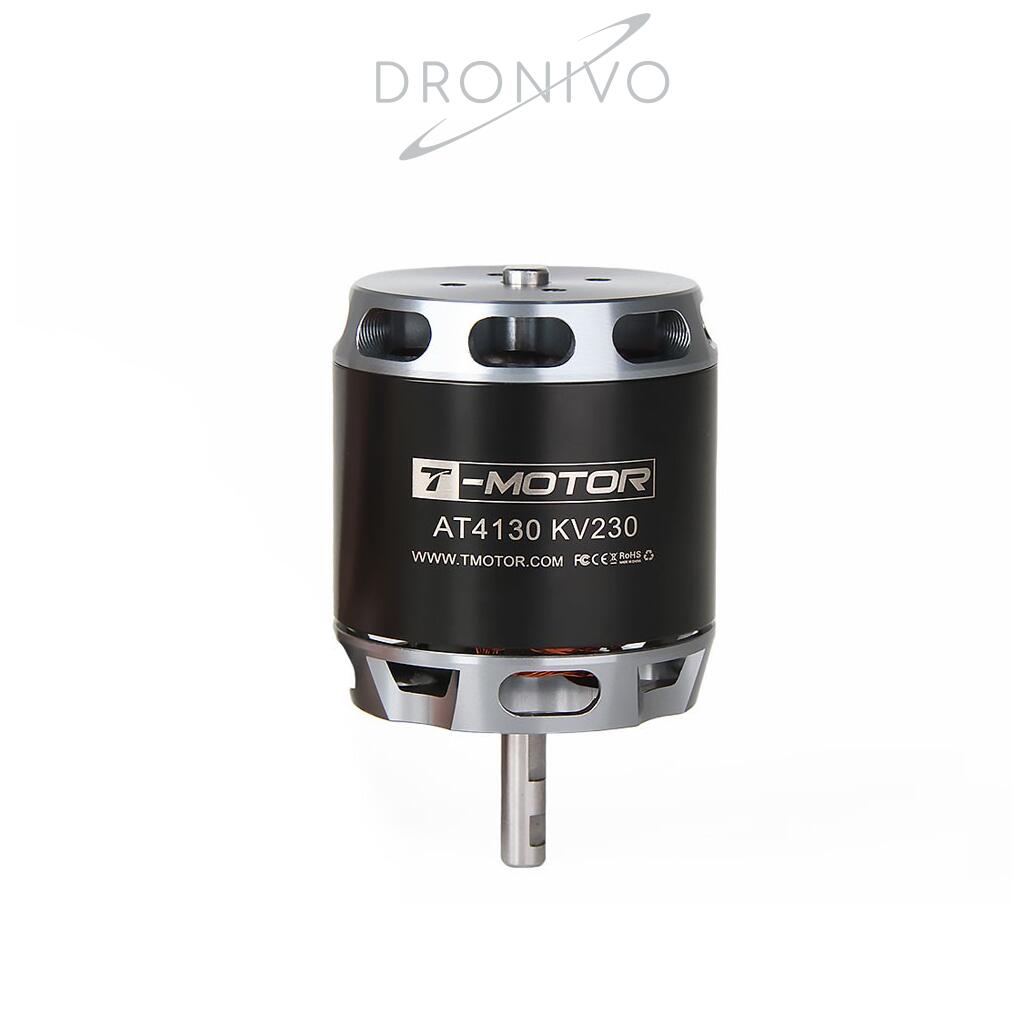

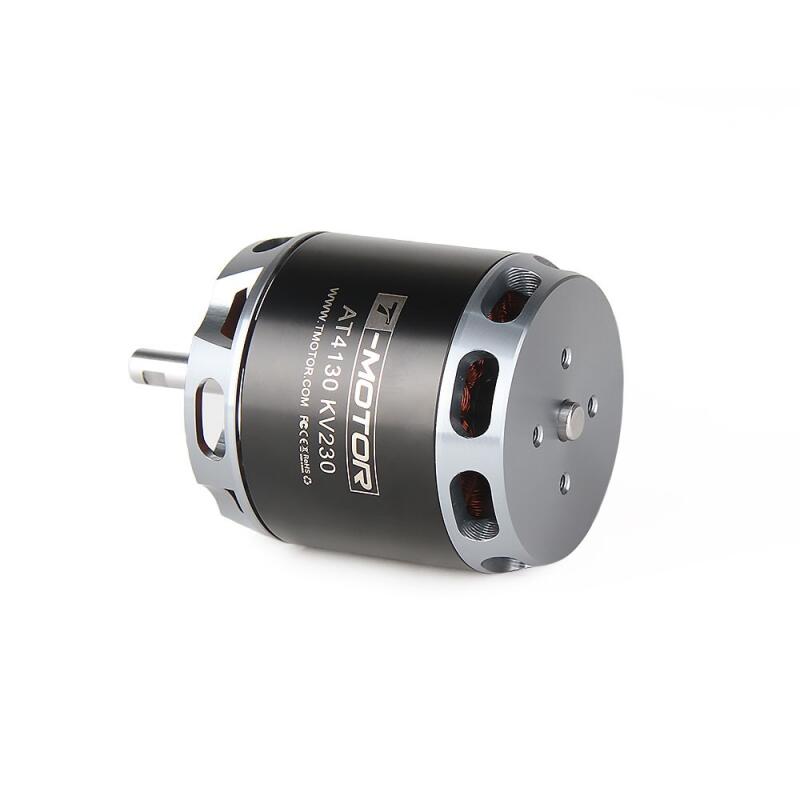

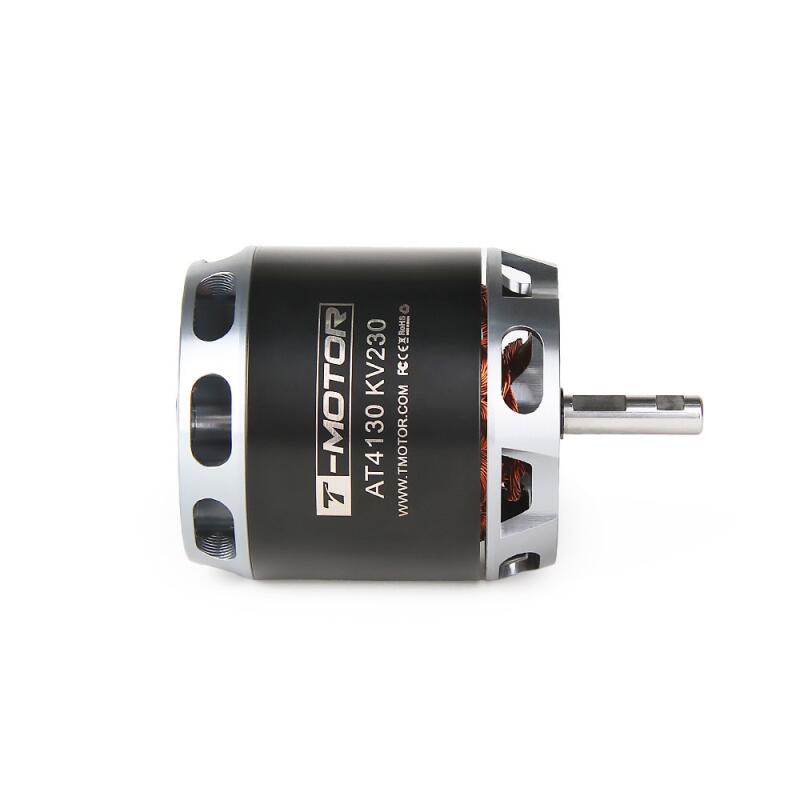

T-Motor AT4130 Long Shaft Fixed-Wing Motor

119,99 €
incl. 19% VAT , plus shipping costs
  • Light and robust AT2303/2304/2306 are 150-320g
  • Fixed-Wing Electric Motor
  • Motor Constant KV

This item has variations. Please select the requested variation.

Available immediately

T-Motors AT-Type Electric Motors

Designed specifically for fixed-wing applications, these motors feature high thermal resistance and enable especially stable flights.

Double the Power, Strong Force

  • Manual winding, high slot fill factor
  • Superior raw materials and exquisite craftsmanship

SECOND GENERATION OF THE AT SERIES

Specially designed for fixed-wing models, UAVs, and industrial drive applications. With the emergence of the second generation A-Series, we can observe a leap in quality following a long history. Every trial and consideration leads to a significant breakthrough for the new generation. Selected high-temperature-resistant arc magnets with double the power and strong force. Efficient and stable endurance, balancing technology and power beautifully. Improvement is everywhere.

ROBUST BODY AND FREE TO SOLVE

With the design of side ventilation and internal cooling blade connection, it forms a semi-box structure that simultaneously enhances strength and improves cooling performance.

MILITARY-GRADE WIRE & DURABLE

  • High-temperature-resistant enameled wire in military quality: A special insulating layer not only enhances the high-temperature resistance of the enameled wire but also extends the motor's lifespan.
  • Pure manual winding, high slot fill factor, high power, and efficiency with soldered banana head connectors.

ANTI-STRIPPING DESIGN

SAFETY GUARANTEE

A linear shaft design along with the C-clip locking shaft and shaft collar ensure safe and reliable operation of the motor at high speeds and high power. Secure flight without fear of rotor loosening!

ARC MAGNET FOR HIGH TORQUE

Powerful arc-shaped magnet with high-temperature resistance, precise tolerance control, appropriate magnet gap, and optimized magnetic circuit of the motor improves motor performance by more than 5% (except 23) and provides significant torque for the propeller.

BEARING DESIGN, SAFER AND MORE STABLE

The large motor (series above 28) features 3 sets of bearings for greater stability, efficiency, and strength under high loads.

Manufacturer: T-Motor
SKU: 184
GTIN: 4251935113969
Content‍: 1,00 Pieces
Manufacturer information:
T-Motor

Specifications

  • Test Item: Long Shaft KV230
  • Motor Dimensions: Ø50*79mm
  • Lead: Enameled Wire 100mm
  • Shaft Diameter:
  • IN: 6mm
  • OUT: 6mm
  • Idle Current (10V): 1.4A
  • Max. Power(180s): 2500W
  • Weight (Incl. Cable): 408g
  • Internal Resistance: 60mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 12S
  • Peak Current (180s): 60A
  • Recommendation: /



  • Test Item: Long Shaft KV300
  • Motor Dimensions: Ø50*79mm
  • Lead: Enameled Wire 100mm
  • Shaft Diameter:
  • IN: 6mm
  • OUT: 6mm
  • Idle Current (10V): 1.8A
  • Max. Power(180s): 3200W
  • Weight (Incl. Cable): 405g
  • Internal Resistance: 32mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 6-12S
  • Peak Current (180s): 75A
  • Recommendation: /



  • Test Item: Long Shaft KV450
  • Motor Dimensions: Ø50*79mm
  • Lead: Enameled Wire 100mm
  • Shaft Diameter:
  • IN: 6mm
  • OUT: 6mm
  • Idle Current (10V): 2.5A
  • Max. Power(180s): 1800W
  • Weight (Incl. Cable): 408g
  • Internal Resistance: 16.8mΩ
  • Configuration: 12N14P
  • Rated Voltage (Lipo): 6S
  • Peak Current (180s): 75A
  • Recommendation: /



Test Report

Type Propeller Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency(g/W))

Operating Temperature

(ºC)

AT4130

Long Shaft

KV230

APC

16*8

 40% 44.40 2.87 127.58 3701 0.226 1087 8.52

78

(Ambient

Temperature:/)
45% 44.38 3.73 165.46 4105 0.284 1341 8.10
50% 44.36 5.18 229.88 4664 0.366 1744 7.59
55% 44.34 6.83 302.67 5143 0.450 2139 7.07
60% 44.31 8.56 302.67 5546 0.531 2513 6.63
65% 44.26 10.59 46.76 5941 0.616 2906 6.20
70% 44.22 13.10 579.10 6363 0.719 3366 5.81
75% 44.16 16.32 720.88 6827 0.841 3903 5.41
80% 44.10 19.63 856.54 7215 0.958 4407 5.09
90% 43.96 27.66 1215.78 7875 1.174 5293 4.35
100% 43.78 38.25 1674.45 8646 1.521 6395 3.82

APC

17*10

 40% 44.52 3.84 171.08 3512 0.349 1459 8.53

97

(Ambient

Temperature:/)
45% 44.51 4.81 213.89 3869 0.424 1768 8.27
50% 4447 6.96 309.40 4395 0.547 2285 7.38
55% 44.43 9.59 426.03 4902 0.690 2867 6.73
60% 44.34 13.34 591.63 5359 0.835 3459 5.85
65% 44.30 15.79 699.52 5679 0.948 3905 5.58
70% 44.24 19.07 843.63 6038 1.087 4428 5.25
75% 44.16 23.84 1052.67 6438 1.248 5069 4.82
80% 44.08 28.30 1247.65 6806 1.410 5650 4.53
90% 43.88 39.96 1753.67 7468 1.780 6939 3.96
100% 43.62 55.63 2426.63 7891 2.101 7630 3.14



Note: Motor temperature is motor surface temperature @100% throttle running 10mins.

(Data above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)



Type Propeller Throttle Voltage (V) Current (A) Power (W) RPM

Torque

(N*m)

 Thrust (g)

Efficiency

(g/W)

Operating Temperature

(ºC)

AT4130

Long Shaft

KV300

APC

17*10

 40% 29.90 4.05 121.08 3148 0.284 1175 9.70

68

(Ambient

Temperature:/)
45% 29.88 5.27 157.61 3471 0.351 1458 9.25
50% 29.82 8.14 242.78 3959 0.458 1903 7.84
55% 29.76 11.40 339.11 4399 0.566 2355 6.94
60% 29.73 14.01 416.40 4747 0.669 2773 6.66
65% 29.66 17.51 519.33 5085 0.772 3187 6.14
70% 29.59 21.50 636.19 5475 0.900 3696 5.81
75% 29.50 26.67 787.01 5821 1.027 4198 5.33
80% 29.43 31.27 920.27 6126 1.145 4662 5.07
90% 29.21 43.47 1269.79 6717 1.411 5652 4.45
100% 29.01 55.72 1616.57 7215 1.670 6577 4.07

APC

18*8

 40% 29.90 4.08 122.11 3124 0.285 1246 10.20

85

(Ambient

Temperature:/)
45% 29.87 5.54 165.57 3478 0.355 1573 9.50
50% 29.82 8.36 249.20 3969 0.462 2061 8.27
55% 29.78 11.20 333.59 4404 0.577 2542 7.62
60% 29.71 14.42 428.57 4781 0.681 3027 7.07
65% 29.67 17.26 512.26 5093 0.771 3438 6.71
70% 29.59 21.71 642.57 5476 0.908 4019 6.26
75% 29.49 26.99 796.16 5800 1.034 4601 5.78
80% 29.41 32.15 945.54 6147 1.169 5145 5.44
90% 29.22 43.46 1269.83 6721 1.428 6224 4.90
100% 29.01 55.77 1617.91 7201 1.672 7231 4.47

APC

14*7

 40% 44.53 3.40 151.51 4778 0.202 1086 7.17

82

(Ambient

Temperature:/)
45% 44.50 4.53 201.78 5356 0.258 1375 6.81
50% 44.47 6.46 287.44 6077 0.339 1796 6.25
55% 44.41 8.76 388.82 6659 0.418 2183 5.62
60% 44.38 11.21 497.36 7306 0.509 2633 5.29
65% 44.35 13.42 595.23 7783 0.586 2989 5.02
70% 44.28 17.04 754.68 8371 0.699 3536 4.69
75% 44.19 22.48 993.34 9045 0.837 4146 4.17
80% 44.11 26.78 1181.17 9528 0.967 4686 3.97
90% 43.89 39.41 1729.89 10475 1.290 5432 3.14
100% 43.67 55.21 2323.39 11329 1.595 6283 2.70

APC

15*8

 40% 44.32 4.37 193.70 4605 0.294 1431 7.39

85

(Ambient

Temperature:/)
45% 44.31 5.73 253.89 5142 0.366 1779 7.01
50% 44.25 8.48 375.21 5885 0.484 2342 6.24
55% 44.20 11.61 513.33 6502 0.613 2928 5.70
60% 44.13 15.12 667.08 7064 0.731 3484 5.22
65% 44.07 18.52 816.06 7526 0.848 4010 4.91
70% 44.01 22.29 981.04 8039 0.983 4569 4.66
75% 44.84 30.92 1355.63 8623 1.208 5080 3.75
80% 44.72 38.65 1689.88 9142 1.420 5694 3.37
90% 43.43 55.53 2412.02 9931 1.801 6751 2.80
100% 43.14 72.26 3117.41 10572 2.171 7787 2.50



Note: Motor temperature is motor surface temperature @100% throttle running 10mins.

(Data above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)



Type Propeller Throttle Voltage (V) Current (A) Power (W) RPM Torque (N*m) Thrust (g) Efficiency(g/W))







AT4130

Long Shaft

KV450

APC

17*10

 40% 22.24 9.57 212.83 3706 0.397 1632 7.67

63

(Ambient

Temperature:/)
45% 22.21 11.55 256.58 3969 0.457 1873 7.30
50% 22.16 14.22 315.17 4285 0.533 2182 6.92
55% 22.08 18.77 414.61 4705 0.655 2671 6.44
60% 22.01 23.17 510.03 5078 0.764 3124 6.13
65% 21.92 28.60 627.00 5418 0.885 3610 5.76
70% 21.82 34.25 747.18 5733 0.993 4039 5.41
75% 21.72 40.63 882.51 6090 1.113 4486 5.08
80% 21.57 49.20 1061.39 6405 1.274 5113 4.82
90% 21.31 65.24 1390.48 6926 1.540 6091 4.38
100% 21.16 74.27 1571.68 7167 1.676 6534 4.16

APC

18*8

 40% 22.24 9.57 212.80 3696 0.400 1778 8.35

81

(Ambient

Temperature:/)
45% 22.21 11.36 252.32 3953 0.454 2016 7.99
50% 22.16 14.17 314.14 4283 0.533 2356 7.50
55% 22.09 18.30 404.33 4684 0.643 2830 7.00
60% 22.01 23.22 511.02 5082 0.765 3374 6.60
65% 21.93 28.09 615.93 5403 0.870 3824 6.21
70% 21.84 33.66 735.00 5719 0.994 4355 5.93
75% 21.72 40.51 879.75 6048 1.120 4908 5.58
80% 21.60 47.54 1026.98 6360 1.248 5409 5.27
90% 21.34 63.11 1346.94 6905 1.503 6471 4.80
100% 21.18 72.70 1540.06 7201 1.641 7017

4.56



Note: Motor temperature is motor surface temperature @100% throttle running 10mins.

(Data above based on benchtest are for reference only, comparion with that of other motor types is not recommended.)



Contents

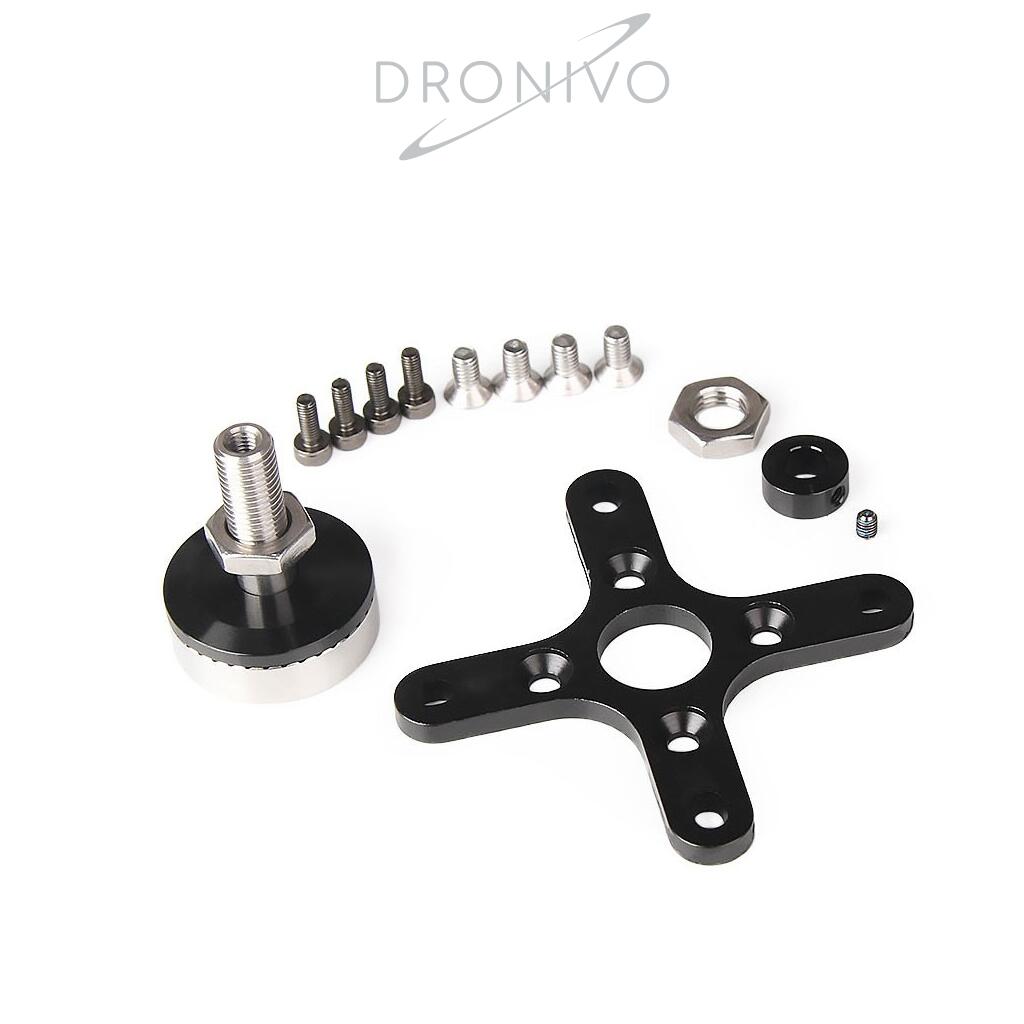

  • Motor x 1
  • Parts Bag x 1

Please check that your package contains all the above items before use, If something is missing, please contact online customer service or leave message to onlinesales@rctigermotor.com
